CAMCOR ITEM NO. 260000113 | MFG. PART NO. 998-1150-00
Product Highlights

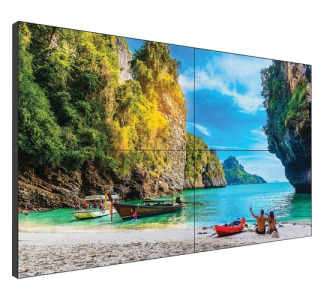

The Planar® VM55MX-M is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 700-nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar ... More
California Residents:The Planar® VM55MX-M is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 700-nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55MXM has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55MX-M delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55MX-M is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums. The Planar VM55MX-M is an ENERGY STAR® certified video wall display.
| General Information | |
|---|---|
| Manufacturer | Leyard |
| Brand Name | Planar |
| Product Series | VM |
| Product Model | VM55MX-M |
| Product Type | Digital Signage Display |
| Technical Information | |
| Video Wall Compatible | Yes |
| Bezel Width (Bottom) | 17.3 mil |
| Bezel Width (Top) | 17.3 mil |
| Bezel Width (Left) | 17.3 mil |
| Bezel Width (Right) | 17.3 mil |
| Display & Graphics | |
| Screen Size | 55" |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Pixel Pitch | 24.8 mil |
| Backlight Technology | Direct LED |
| Video | |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 20,000:1 |
| Color Depth | 10-bit |
| Brightness | 700 Nit |
| Color Gamut | 72% |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of DisplayPorts | 1 |
| Power Description | |
| Input Voltage | |
| Physical Characteristics | |
| VESA Mount Standard | 400 x 400 |
| Height | 26.8" |
| Width | 47.7" |
| Depth | 3.7" |
| Weight (Approximate) | 51 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| |
