QAM/8VSB/Analog Signal Analyzer

Product Description

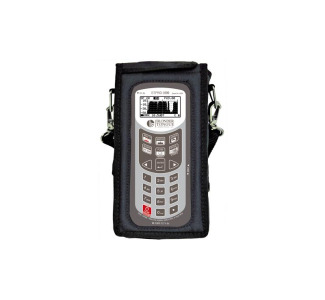

BTPRO-1000 is a versatile CATV test instrument for measuring both digital and analog CATV and broadcast TV signals. Robust and easy to use, BTPRO-1000 provides hours of operating time from its high capacity battery. The instrument comes complete with a soft carrying case, AC main and automotive chargers. An optional Pro:Idiomâ„¢ Key recovery feature is available for Hospitality applications that employ Pro:Idiomâ„¢ television sets. The option consists of a built-in frequency agile QAM modulator that connects directly to an affected Pro:Idiomâ„¢ TV to provide new encryption key information.

• QAM/8VSB/NTSC measurements
• Extended frequency range of 4 to 1000MHz
• MER, aBER, bBER, noise margin and level/power measurements plus spectrum analysis
• Automatic quality analysis, Fail-Marginal-Pass
• Auto seek and store function, an essential feature for creating custom memory channel plans
• Scans receivable signals, determines signal type (QAM, 8VSB/analog) and stores only those channels having signal levels above user defined values
• Ingress and leakage modes
• Data logger function, steps through each channel in "active" memory plan and stores all related measurements
• Graphics display
• Alpha-numeric keypad
• Optional TV key recovery for hospitality Pro:Idiom™ systems
