RF Venue DISTRO9 HDR Antenna Distribution System and Diversity Architectural Antenna Bundle

Product Description

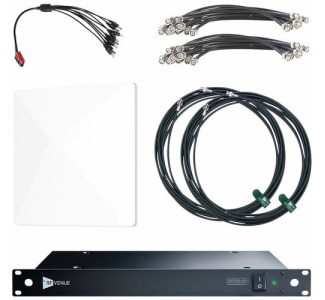

This RF Venue bundle includes one DISTRO9 HDR 9-channel antenna distribution system, one Diversity Architectural antenna for wireless microphones, two RG8X25 25-foot coaxial cables with BNC (male) connectors, one RG8X2-10 10-pack of 2-foot interconnect cables, one RG8X1.5-10 10-pack of 1.5-foot interconnect cables, and one DC-KIT-D9 DC power distribution cable kit for DISTRO9 HDR.

• DISTRO9 HDR Antenna Distribution System
• Highest-quality RF signal distribution for wireless microphones
• Nine low-noise channels of diversity wireless
• Low-noise figure amplifiers and superior gain structure provide over 60 dB of dynamic range across the spectrum
• Any output can be cascaded to a second DISTRO9 HDR for up to 17 wireless microphone channels in just two units of rack space
• Two zones of antenna coverage
• Superior gain flatness and stability across VHF low, VHF high, T-Band, UHF, and 900 MHz ranges
• Dedicated DC power port for receivers and accessories
• D-ARC Diversity Omni Antenna
• High-performance diversity antenna system for wireless microphones eliminates the most common signal dropouts caused by changes in angle and orientation of the RF signal
• Unique patent-pending, dual-feed antenna design enables use of both A and B diversity connections, removing the need to install two separately spaced antennas
• Ideally suited for conference rooms, multipurpose meeting spaces, training rooms, and houses of worship
• Installs in any position on a wall or ceiling and can be painted to match any interior
• Includes ceiling and wall mounting kits
• RG8X25 25-Foot Coaxial Cable
• Premium low-loss RG8X coaxial cable with BNC (male) connectors
• Double-shielded (braid over foil) design
• 25' (7.6 m)
• RG8X2-10 and RG8X1.5-10 Premium BNC Interconnect Cable 10-Packs
• RF Venue Certified Interconnect Cable offers improved system performance
• RG8X2-10: 2' (0.6 m) long cable
• RG8X1.5-10: 1.5' (0.5 m) long cable
• Tough, crush- and kink-resistant jacket
• 100% braid-over-foil shield
• Very low loss
• May be used in transmit or receive applications
