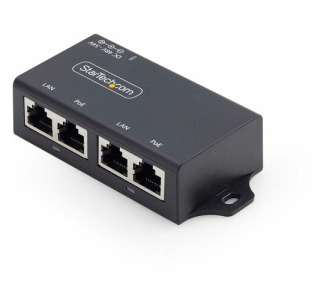

StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/802.3at), 30 Watt, 1Gbps Ethernet, Wall Mountable, Unmanaged

Print StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/802.3at), 30 Watt, 1Gbps Ethernet, Wall Mountable, Unmanaged pageRequest Bulk Pricing CAMCOR ITEM NO. 801905641 | MFG. PART NO. AF221C-POE-INJECTOR
StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/802.3at), 30 Watt, 1Gbps Ethernet, Wall Mountable, Unmanaged
StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/802.3at), 30 Watt, 1Gbps Ethernet, Wall Mountable, Unmanaged
Zoom
Close WindowZoom
Alternate View
Your Price: $70.99
Quantity

IN STOCK

Product Highlights
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.



Back to Top

Specifications

General Information
ManufacturerStarTech.com
Brand NameStarTech.com
Packaged Quantity1
Product TypePoE+ Injector
Technical Information
Protection TypeSurge Protection
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
    • Maximum Output Voltage52 V DC
    Maximum Output Current580 mA
    Maximum Output Power30 W
    Interfaces/Ports
    Input PortsRJ-45
    Output PortsPoE+
    Physical Characteristics
    Color FamilyBlack
    Product ColorBlack
    Form FactorDesktop/Surface/Wall Mountable
    Weight (Approximate)2.10 oz
    Miscellaneous
    Package Contents
    • 30W PoE+ Injector
    • 1 x Power Adapter
    • 1 x Quick-Start Guide
    Compatibility

    Compatible Products:

    • Access Points
    • IP Cameras
    • VoIP Phone Systems
    • IPTV
    • Access Controls
    Certifications & Standards
    • IEEE 802.3at
    • IEEE 802.3af
    • IEEE 802.3ab
    • IEEE 802.3u
    • IEEE 802.3i
    • IEC 61000-4-2 Level-4 ESD protection
    • Chipset ID IC Plus - IP802AR
    Warranty
    Limited Warranty2 Year
