Tripp Lite by Eaton 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Name: Tripp Lite by Eaton 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
Brand: Eaton
Price: 477.99 USD
Availability: InStock

Print Tripp Lite by Eaton 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA page

CAMCOR ITEM NO. 224007891 | MFG. PART NO. PDUMH32HV

Tripp Lite by Eaton 7.4kW Single-Phase Local Metered PDU, 230V Outlets (2-C19, 16-C13), IEC-309 230V 32A Blue, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Product Highlights
PDUMH32HV horizontal 2U metered rack PDU supports 32A maximum capacity at 230V. Includes 12 ft / 3.6m attached line cord with Blue IEC-309 32A input plug and 18 output receptacles (16 C13, 2 C19). ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Related Documents |Customers Also Viewed |Reviews

Product Description

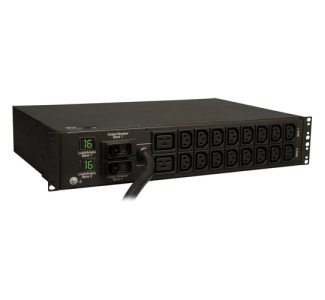

PDUMH32HV horizontal 2U metered rack PDU supports 32A maximum capacity at 230V. Includes 12 ft / 3.6m attached line cord with Blue IEC-309 32A input plug and 18 output receptacles (16 C13, 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.

Specifications

General Information
Manufacturer	Tripp Lite by Eaton
Brand Name	Tripp Lite by Eaton
Product Series	Metered
Product Model	PDUMH32HV
Product Type	PDU
Technical Information
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	2 x IEC 60320 C19 16 x IEC 60320 C13
Protection Type	Overload Protection
Power Description
Input Voltage	230 V AC
Output Voltage	230 V AC
Power Rating (Watt)	7300 W
Physical Characteristics
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Rack Height	2U
Height	3.5"
Width	17.5"
Depth	12.5"
Weight (Approximate)	13.70 lb
Miscellaneous
Package Contents	Metered PDUMH32HV 18-Outlets 7.3kW PDU Mounting Brackets Plug Retention Brackets User Manual
Additional Information	Plug Type : IEC-309 32A (2P+E)
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
