Tripp Lite by Eaton DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, RS-232, IR, Multimode LC, 985 ft. (300 m), TAA

Print Tripp Lite by Eaton DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, RS-232, IR, Multimode LC, 985 ft. (300 m), TAA pageRequest Bulk Pricing CAMCOR ITEM NO. 323907767 | MFG. PART NO. B127F-1A1-MMDDA
Tripp Lite by Eaton DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, RS-232, IR, Multimode LC, 985 ft. (300 m), TAA
Tripp Lite by Eaton DisplayPort over Fiber Extender Kit, Transmitter/Receiver, 4K 60 Hz, 4:4:4, RS-232, IR, Multimode LC, 985 ft. (300 m), TAA
Zoom
Close WindowZoom
Alternate View

MSRP: 1337.00
Savings: $271.01

Your Price: $1065.99
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
DisplayPort Extender for Digital Signage in Schools, Trade Shows and Lecture HallsThis complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

DisplayPort Extender for Digital Signage in Schools, Trade Shows and Lecture Halls

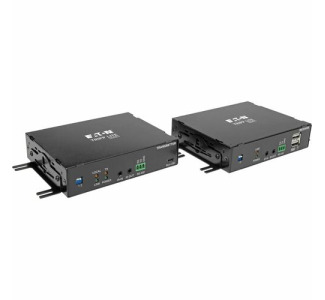

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional AV cables allow. The B127F-1A1-MMDDA extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 985 feet (300 meters) away via user-supplied duplex multimode LC fiber cabling.

Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color

The B127F-1A1-MMDDA supports Ultra HD 4K video resolutions up to 3840 x 2160 at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with riche

DIP Switches Extend Your Choice of USB, IR or RS-232 Signals

The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.

Plug-and-Play Operation for Quick Setup and Immediate Use

The included transmitter and receiver work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex multimode LC fiber cable (N820-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the remote receiver. The local port allows connection of displays with lower resolutions, such as 720p and 1080p, without affecting the 4K 60 Hz signal transmission to the receiver.

TAA-Compliant for GSA Schedule Purchases

The B127F-1A1-MMDDA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specifications

General Information
ManufacturerTripp Lite by Eaton
Brand NameTripp Lite by Eaton
Product ModelB127F-1A1-MMDDA
Product TypeKVM Console/Extender
Technical Information
Connectivity TechnologyWired
Maximum Operating Distance985 ft
Video
Graphic Mode4K
Maximum Video Resolution3840 x 2160
Interfaces/Ports
USBYes
HDMIYes
DisplayPortYes
Number of HDMI Ports1
Number of USB Ports3
Power Description
Input Voltage
  • 120 V AC
  • 240 V AC
  • Input Voltage Range100V AC to 240V AC
    Physical Characteristics
    Color FamilyBlack
    Product ColorBlack
    Form Factor
  • Rack-mountable
  • Wall Mountable
  • Transmitter Height5.04"
    Transmitter Width1.17"
    Transmitter Depth3.94"
    Receiver Height5.04"
    Receiver Width1.17"
    Receiver Depth3.94"
    Transmitter Weight (Approximate)8.11 oz
    Receiver Weight (Approximate)8.11 oz
    Miscellaneous
    Package Contents
    • Transmitter
    • Receiver
    • 2 x External Power Supplies (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A) with 4.5 ft. (1.4 m) cord
    • 8 x International Plug Adapters (North America, Europe, Australia, United Kingdom)
    • 2 x Sets of Mounting Hardware
    • Owner's Manual
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • TAA CompliantYes
    Warranty
    Limited Warranty1 Year
