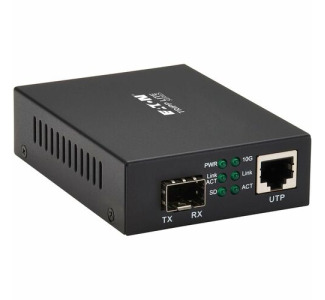

Tripp Lite series N786-001-SFP Transceiver/Media Converter

Product Description

Customizes Your Network Extension over Fiber Optic Cable

This network media converter works with a variety of SFP and SFP+ transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located up to 80 kilometers (50 miles) away. The N786-001-SFP is ideal for network engineers migrating toward higher-density data centers.

Flexible to Fit Your Network Needs

Not only does the N786-001-SFP support SFP and SFP+ transceivers, as well as DDM functionality, it also supports IEEE 802.3ab 1000Base-Tx and IEEE 802.3z 1000Base-Fx protocols. You can easily hot-swap transceivers and cabling, so no system shutdown is necessary during routine maintenance. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

LEDs Indicate Installation Performance and Diagnostic Functions

Easy-to-read LEDs on the side of the media converter indicate essential status information, including network speed and connection, signal diagnostics and unit power. LEDs also indicate when a copper or fiber cable has been severed or another cause of disruption in service has occurred.

Protective Metal Housing Built to Withstand a Variety of Hazards

The rugged metallic case is designed to operate in temperatures ranging from 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit).
