CAMCOR ITEM NO. 545008213 | MFG. PART NO. LS630W
Product Highlights

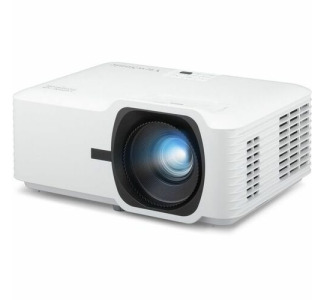

The LS630W is a versatile, lamp-free projector designed for seamless integration into commercial and educational environments. Powered by next-generation laser phosphor technology, it delivers a low ... More
California Residents:The LS630W is a versatile, lamp-free projector designed for seamless integration into commercial and educational environments. Powered by next-generation laser phosphor technology, it delivers a low total cost of ownership (TCO) with a lifespan of up to 30,000 hours, ensuring long-term savings and eco-friendliness. With 4,500 ANSI Lumens of brightness, the projector produces vibrant and clear images in any lighting condition. Designed for seamless upgrades, it features a 1.18 to 1.54 throw ratio, making it compatible with existing ceiling mounts. Installation is made flexible with 1.3x optical zoom, horizontal/vertical keystone correction, 360° projection capability, and portrait mode. Its centralized LAN control simplifies monitoring and management in networked setups, while the dedicated Golf Mode enhances simulation experiences.
| General Information | |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Brand Name | ViewSonic |
| Product Line | Luminous Superior |
| Product Model | LS630W |
| Package Type | OEM |
| Packaged Quantity | 1 Pack |
| Product Type | DLP Projector |
| Technical Information | |
| Projection Method | Front |
| Interactive | Yes |
| Vertical Scan Range | 24 Hz - 120 Hz |
| Projection Lens | |
| Minimum Focal Length | 16.90 mm |
| Maximum Focal Length | 21.61 mm |
| Minimum Diagonal Image Size | 30" |
| Maximum Diagonal Image Size | 25 ft |
| Optical Zoom | 1.3x |
| Minimum Projection Distance | 30.31" |
| Maximum Projection Distance | 32.74 ft |
| Lamp | |
| Number of Lamps | 1 |
| Lamp Type | Laser/Phosphor |
| Normal Mode Lamp Life | 20000 Hour |
| Economy Mode Lamp Life | 30000 Hour |
| Image | |
| Standard Mode Brightness | 4500 lm |
| Color Supported | 1.07 Billion Colors |
| Native Resolution | 1280 x 800 |
| Graphic Mode | WXGA |
| Throw Ratio | 1.18 to 1.5432.74 ft) |
| Contrast Ratio | 300,000:1 |
| Video | |
| Video Signal Standard | HDTV |
| Output Scan Format | 1080p |
| Audio | |
| Speaker Included | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Operating Power Consumption | 175 W |
| Physical Characteristics | |
| Form Factor | |
| Height | 5.1" |
| Width | 11.3" |
| Depth | 8.5" |
| Weight (Approximate) | 6.83 lb |
| Miscellaneous | |
| Application/Usage | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service |
| |
|
|
|
|
