Chief SL-236FD Smart Lift 36 electric lift mount

Name: Chief SL-236FD Smart Lift 36 electric lift mount
Brand: Chief
Price: 5267.20 USD
Availability: InStock

Print Chief SL-236FD Smart Lift 36 electric lift mount page

CAMCOR ITEM NO. 115022272 | MFG. PART NO. SL236FD

Chief SL-236FD Smart Lift 36 electric lift mount

Product Highlights
Chief SL-236FD Smart Lift 36 electric lift mount Exceptionally smooth and quiet movement, the SL-236 is a good in-ceiling LCD projector mount choice for finished ceilings in homes and corporate ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

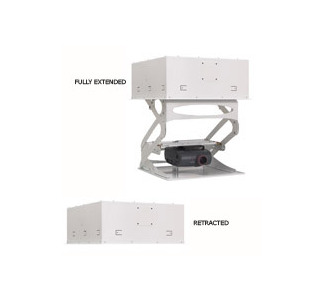

Chief SL-236FD Smart Lift 36 electric lift mount

Exceptionally smooth and quiet movement, the SL-236 is a good in-ceiling LCD projector mount choice for finished ceilings in homes and corporate offices.

Product Features

Fits most installation requirements, needing only eleven inches of clearance above the ceiling; easily accommodates multiple control options.
Plenum rated; not UL Listed.
View SMART-LIFT Controller Capabilities chart
Two internal outlets, one is switched on 110V units

Specifications

Downward Travel	36" (914.40 mm)
Minimum Clearance Above Ceiling	11" (279.4 mm)
Overall Dimension (Up Position - H x W x D)	11 x 25 x 27.5" (279.40 mm x 635 mm x 698.50 mm)
Maximum Projector Size (H x W x D)	9.25 x 20.5 x 22.75" (235 x 520.7 x 577.9 mm)
Ceiling Opening (WxD)	25.5 x 27.75" (641.35 mm x 704.85 mm)
Ceiling Closure Panel (WxD)	24 x 24" (609.60 mm x 609.60 mm)
Voltage	120V or 230V
Low Voltage	Will accept 5-30V AC/DC for triggering commands
Current Draw	0.75 Amps Continuous.All electrical components are CSA and VDE listed
Net Weight	85 lbs. (38.46 kg)
Lift Capacity	35 lbs. (15.9 kg)
Projector Adjustment Features	Roll ± 2º, Pitch ± 15º, Yaw ± 10º, Fore/aft and right/left projector cradle positioning
