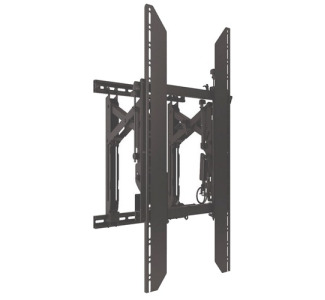

Chief LVS1UP Wall Mount for Flat Panel Display

Name: Chief LVS1UP Wall Mount for Flat Panel Display
Brand: Chief
Price: 885.60 USD
Availability: InStock

Print Chief LVS1UP Wall Mount for Flat Panel Display page

CAMCOR ITEM NO. 115022699 | MFG. PART NO. LVS1UP

Chief LVS1UP Wall Mount for Flat Panel Display

Product Highlights
Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

The LVS1UP ConnexSys Video Wall system portrait mount ships with rails for each mount.

Specifications

General Information
Manufacturer	Chief Manufacturing
Brand Name	Chief
Product Model	LVS1UP
Product Type	Wall Mount
Product Information
Device Supported	Flat Panel Display
Maximum Load Capacity	150 lb
Minimum Screen Size Supported	40"
Maximum Screen Size Supported	80"
Maximum Adjustable Depth	13.40"
Features	Adjustable Height Tilt Lateral Adjustment Adjustable Depth
Physical Characteristics
Color	Black
VESA Mount Compatible	Yes
VESA Mount Standard	200 x 100 800 x 400
Height	32.5"
Width	19.5"
Depth	4"
Miscellaneous
Additional Information	Compatible with most 1-5/8" sizes of channel strut Reduces installation time - especially for XL and recessed configurations Tool-free ClickConnect latching secures displays PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount Height adjustment ±1" on each interface Tilt adjustment at single pivot point, protects displays from twisting Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service Security - pad lock ¼" shank diameter
Compatibility	TV
Warranty
Limited Warranty	10 Year
