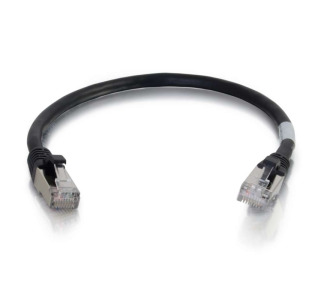

10ft Cat6 Snagless Shielded (STP) Network Patch Cable - Black

Product Description

Protect a high speed network from noise and electromagnetic interference when connecting with our Snagless Shielded Cat6 patch cable. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.

• Cable type: Stranded SSTP
• Wiring scheme: 568B
• Temperature rating: 75°C
• Testing: ANSI/TIA 568 C.2 Cat6 component tested
• Conductor type: 26AWG (7/0.16) (bare copper)
• Insulation: FM-PE
• Foil shield: Aluminum foil (100% coverage)
• Braided shield: Copper braid (40% coverage)
• Jacket: PVC
• Connector Type: RJ-45 Male
• Shell: Nickel plated for shielding
• Housing: Polycarbonate, UL94V-0
• Contacts: 50µm gold plated
• Hood: Molded Snagless PVC UL94V-0
