CAMCOR ITEM NO. 215011176 | MFG. PART NO. ATCP-W02R
Product Highlights

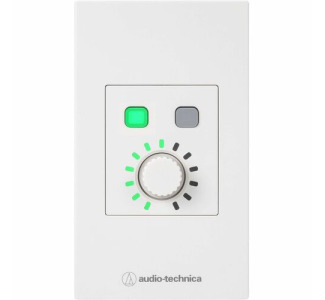

Dramatically improve the functionality of an ATDM-0604a or ATDM-1012/1012DAN Digital SmartMixer® with the ATCP-W02R control panel. This wall-mount unit offers convenient dial volume control along ... More
California Residents:Dramatically improve the functionality of an ATDM-0604a or ATDM-1012/1012DAN Digital SmartMixer® with the ATCP-W02R control panel. This wall-mount unit offers convenient dial volume control along with buttons to recall presets and switch channels assigned by the mixer's Web Remote function. The control panel also includes a programable dial button to switch between and lock presets. The rear of the ATCP-W02R is equipped with two RJ45 Audio-Technica LINK ports, enabling the connection of up to four control panels to a single mixer via Cat5e or higher Ethernet cable.
| General Information | |
|---|---|
| Manufacturer | Audio-Technica U.S., Inc |
| Brand Name | Audio-Technica |
| Product Type | A/V Control Panel |
| Technical Information | |
| Connectivity Technology | Wired |
| Dimmer Type | Dial |
| Power Description | |
| Power Rating | 1.20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 4.7" |
| Width | 2.8" |
| Depth | 2.4" |
| Weight (Approximate) | 3.95 oz |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | Audio-Technica Audio Mixers:
|
| |
|
|
|
|
