Chief Tempo Flat Panel In-Wall Boxes and Stud Tabs Kit - For Displays Above 65 Inch - VESA Wall Mount - Black

Product Description

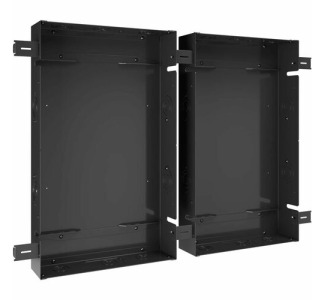

This Tempo™ Flat Panel In-Wall pre-drywall kit allows contractors to install in-wall boxes with stud tabs during the rough-in construction phase. NOTE: For a complete system installation the Tempo Flat Panel In-Wall Flange-Mount-Storage Kit (FPIWMKIT2) is required, purchased separately.

Add as many storage boxes as needed (FPIWSBX) to store small devices. These storage boxes are designed to fit perfectly between 16" O.C. (On Center) metal studs and install like any other in-wall box. There's no need to cut wall studs to accommodate flat panel VESA patterns because the mount supports65"+displays and are weight-rated up to 250 pounds (113 kg), covering in-wall boxes. This robust weight rating also removes the need for wood blocking reinforcement (when installed per manufacturer instructions).

An infinite number of horizontal mounting patterns are compatible with the system to accommodate extra-large and some ultrawide displays because storage boxes can be set as far apart as needed to align the flat panel with the mount. Mounting patterns can extend up to 650 mm tall with the FHB5174 adapter bracket(sold separately).

Three types of knockouts per box offer flexibility in vertical and horizontal cabling between storage boxes, giving total control over power and data design.

• Side wall knockouts accommodate four different trade conduit sizes: 1.5" , 1.25" , 1" and 0.5"
• Top (3) & Bottom (3) knockouts: - 1.25" , 1" and 0.5"per box
• Single-gang electrical box: one bottom, one top per box

Kit Includes:

• (2) In-wall box
• (8) Stud tab
• (8) #6 x
