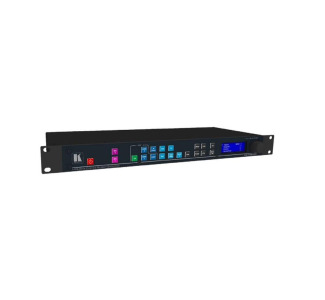

12-input HQUltra 4K60 4:2:0 HDBaseT and Legacy Presentation Switcher/Scaler with Ultra-Fast Input Switching, Analog Audio, 3G HD-SDI, Genlock, H.264 Streaming Input and LED Videowall Scaling

Product Description

The VP-798ASV is a universal 4K at 60Hz (4:2:0) presentation scaler-switcher for HDMI, DisplayPort, HDBaseT, VGA, composite, DVI-U, 3G HD-SDI, H.264 streaming input signals and analog audio. Its HQUltraFast technology switches in typically a quarter of a second.

• HQUltra Scaling - Low-latency, 4K best-in-class, proprietary scaling algorithms
• HQUltraFast Switching - Proprietary technology for typical 0.25 second input channel switching
• H.264 1080p Streaming Video Input - Via network port
• HDCP Compliant
• Resolution Support - Up to 4K at 60Hz (4:2:0). Supports custom output resolutions
• Ease of Setup - Front panel jog-wheel and LCD display for fast easy set-up in the field
• Color Calibration - For all source types including RGB controls, saturation and hue
• Pan-Tilt-Zoom Control
• LED Videowall Scaling
• Built-in Test Patterns - For easy projector setup
• Supports Customized Video Logo
• Flexible Aspect Ratio Conversion
• Audio Handling - Audio de-embed from H.264 streaming, 3G HD-SDI, HDMI, DisplayPort, and HDBaseT inputs to analog and S/PDIF; re-embed to 3G HD-SDI, HDMI and HDBaseT outputs
• Analog Audio - Up to 8 unbalanced stereo inputs, two microphone inputs with phantom power and an audio mixer
• Speaker Outputs - Stereo power amplifier supporting 15W+15W RMS loudspeaker outputs, separate stereo balanced line level audio outputs for external amplifier systems
• Picture-in Picture
• Multiple Outputs - For local monitoring of live output feed
• Flexible Control Options - Front panel buttons and jog wheel with LCD, RS-232, Ethernet with built-in Web pages and via API
• USB Connectors - For firmware upgrading
• Applications:
• Lecture halls
• Classrooms
• Corporate meeting spaces
• Medical and healthcare
• Houses of worship
• Hotel conference venues
• Networked video
