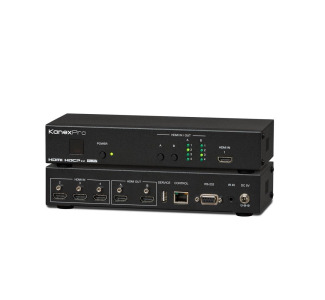

4 x 2 HDMI 2.0 4K/60 Matrix Switcher with HDR10 and EDID Management

Product Description

The KanexPro HDMX42-18G is an easy to use, cost-effective 4K/60Hz with 4:4:4, 16-bit Deep Color, HDR (High Dynamic Range) and HD audio formats based on HDMI 2.0 specs. Designed with 4-inputs and 2-outputs. For swift switching and routing of any HDMI sources such as laptops, Blu-ray players, and 4K based Apple TV to any four displays. This matrix switcher is HDCP 2.2 compliant and supports 4K at 60Hz, 4:2:0 video. It can be controlled via front panel buttons, IR remote and RS232 commands.

• Switch 4 HDMI devices to 2 Displays with 4K/60 + HDR and 4:4:4
• Supports the matrix routing of four 18Gbps HDMI inputs to two 18Gbps HDMI outputs
• Supports resolutions up to 4096x2160 at 60Hz (4:4:4, 8-bit)
• HDMI 2.0 and DVI 1.0 compliant
• HDCP 1.4 and 2.2 compliant
• Maximum data rate up to 18Gbps with deep color support up to 16-bit at 1080p
• Supports pass-through of LPCM 7.1, Bit stream and HD Bit stream audio formats
• Supports EDID management via five pre-defined internal EDIDs and two external EDID options
• Multiple control interfaces including RS-232, Telnet, WebGUI and IR remote
