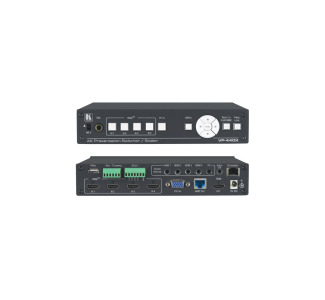

18G 4K Presentation Switcher/Scaler with HDBaseT HDMI Simultaneous Outputs

Product Description

VP-440X is a high-performance 18G 4K HDR presentation switcher/scaler with four HDMI inputs and one computer graphics (VGA) input. It scales the video, embeds the audio, and outputs the signal to two identical outputs - one HDMI and one HDBaseT - together with an analog stereo audio output. Via HDBaseT, it extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

• High-Performance Professional Scaler - Up-scales, down-scales and cross-scales up to resolutions of 4K@60 (4:4:4).
• The output resolution can be set to the native resolution either of the sinks, or manually set to another resolution.
• When the product is configured to scale to 18G 4K resolutions, the HDBT output automatically down-samples the chroma sampling to 4:2:0 coding.
• Smooth Switching - Constant output sync, prevents output glitches while switching between inputs, even when no video is detected.
• Flexible Digital and Analog Audio - Select a dedicated unbalanced analog audio input to embed into each input.
• In addition, a microphone input is provided on the front panel for mixing, switching or talk-over. Any of the signals can play audio through the unbalanced audio output.
• Powerful Audio Processing - Supports DSP technology including audio equalization, mixing, delay, and microphone talk-over (ducking).
• HDMI Signal Extension - HDCP 2.2 and HDCP 1.4 compliant.
• HDR - Supports HDR10.
• EDID Pass-Through - EDID passed through from the source to the display.
• CEC Support - Supports passing of CEC from input to output.
• Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions, on each extension line, enabling data transmission and control of devices.
• Diverse Control Options - Control the unit using an OSD (On-Screen Display) via front panel buttons, embedded web pages via Ethernet and/or serial communication via RS-232 transmitted by a PC, touch screen system or other serial controller.
• Additionally, connect to the contact closure connector for remote switching of sources and for toggling the display ON and OFF.
• Easy Installation - 1/2 19" size enables mounting in a 1U rack space with the recommended rack adapter.
