8x8 4K HDR HDCP 2.2 Matrix Switcher with Analog and Digital Audio Routing

Product Description

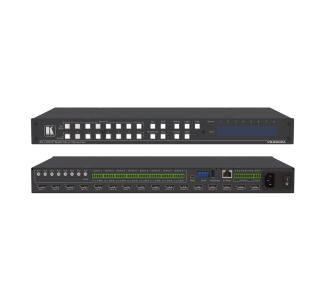

VS-88H2A is a high-quality, 8x8 matrix switcher for 4K at 60Hz (4:4:4), HDR, HDMI signals and analog and digital audio routing. It reclocks and equalizes the signals and can route any one of eight HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-88H2A offers unmatched audio flexibility where any embedded digital or analog audio input can be routed to any embedded digital or analog audio output in addition to eight ARC sources to produce an equivalent 24x20 audio matrix.

• High-Performance AV Matrix - Switches 8 4K at 60Hz (4:4:4), HDR, HDMI, HDCP, DVI-compliant signals to 8 4K at 60Hz (4:4:4), HDR, HDMI, HDCP, DVI-compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant. Featuring Kramer re-KlockingT
• HDMI Support - Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
• Independent Audio Routing - Any embedded digital or analog audio input can be routed to any embedded digital or analog audio output in addition to eight ARC sources to produce an equivalent 24x20 audio matrix (8 embedded digital inputs + 8 analog inputs
• Easy Step-In Collaboration Function - When used with a Kramer Step-In enabled switcher, just plug in your device and press the Step-In button. Your device becomes the active signal on the main display.
• EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
• Flexible Content Protection - Selectable HDCP per input.
• Quick Access to Common Configurations - Save up to 16 preset configurations.
• Smart Switching - Active source and acceptor detection. Automatic input selection based on priority selection or last connected input.
• Embedded Pattern Generator - With selectable patterns.
• Convenient Unit Control and Configuration Options - Local control via front panel: switching, audio embedding, mute, test pattern, memory, EDID, front panel lock and factory reset buttons, Input/Output LED display. Distance control using user-friendly em
• Cost-Effective Maintenance - Input Selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet or mini USB.
• Easy Installation - 19 inch enclosure for rack mounting in a 1U rack space with included rack ears and universal 100-240V AC power supply.
• Included: Rack ears, rubber feet, power cord
