4x2 4K HDR HDMI HDCP 2.2 Matrix Switcher

Product Description

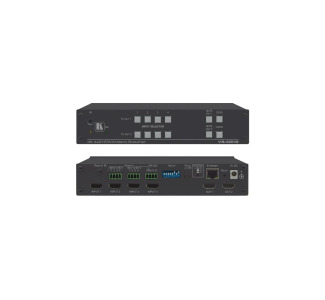

VS-42H2 is a high-performance 4x2 matrix switcher for 4K HDR HDMI signals. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously.

• High-Performance AV Matrix - Switches 4 4K at 60Hz (4:4:4) HDR HDMI HDCP-compliant signals to 2 18G 4K at 60Hz (4:4:4) HDR HDMI HDCP-compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant.
• Kramer Equalization and reKlocking™ Technology - Rebuilds the digital signal to travel longer distances.
• EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
• Flexible Content Protection - Selectable HDCP per input.
• Quick Access to Common Configurations - Save up to six preset configurations.
• Convenient Unit Control and Configuration - Local control via front panel switching, mute, lock and EDID buttons, and IR remote control. Distance control via user-friendly embedded web pages via the Ethernet, Protocol 3000 API and RS-232 serial commands t
• Cost-Effective Maintenance - Power status, IR and Input Selection indicators facilitate easy local maintenance and troubleshooting. Local firmware upgrade via USB or RS-232 connection ensures lasting, field-proven deployment.
• Easy Installation - Half-19 size enables mounting in a 1U rack space with the recommended rack adapter.
