7" ProHD HD/C2K Portable Camera-top LCD Monitor

Product Description

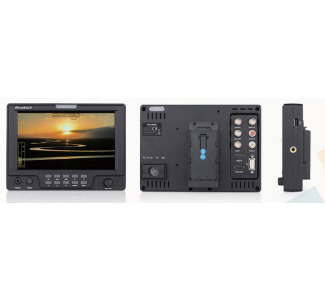

The DT-X71HP is a 7-inch HDSDI/HDMI on-camera monitor with 1024x600 resolutions, H/V: 160/160 viewing angle and 900:1 contrast ratio. It has front and rear dual TALLY lights, Canon DSLR scale zoom-in, video flip, customer editable video title, and safety mark display. The monitor accepts 2 HD/SD-SDI, 1 HDMI, 1 Composite video, 1 stereo audio input, and has 1 HD/SD-SDI loop through output. Upgraded for 2017, the monitor now has the capability of monitoring Cinema 2K (2048x2160) signals and time-code and audio (via SDI.) Focus assist, zebra stripes and a wider range of safety markers have been added. The DT-X71HP is powered via a 4-pin XLR 12VDC connector or a snap-on 7.4V IDX SSL-JVC50 battery (optional). The same battery used with the GY-HM200/620/660 cameras.

• 7-inch FFS LCD panel with LED backlight
• 1024x600, H/V 160° viewing angle
• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
• Markers: 4:3, 13:9, 14:9, 15:9, 1.85:1 and 2.35:1
• 2-ch SDI/HDMI/Analog audio meters
• Peaking focus assist, Zebra stripes
• H/V delay, freeze frame, AFD, time code
• False color, RGB/Mono, 100% internal color bars
• SDI time code display
• Front/rear TALLY light with GPI input and control
• Firmware upgrade capability via USB
