8" Coaxial Loudspeaker with Hyfidrophobic Treatment

Product Description

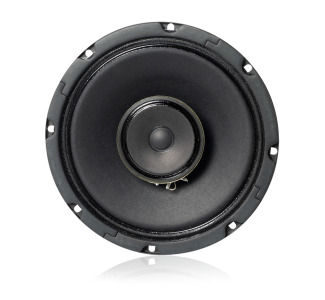

Model C803AT87, A high-quality 16-watt loud loudspeaker with a factory-installed 70.7V 8W linematching transformer.<br>Model C803AT87 utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.<br>The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).<br>Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.

• Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
• Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
• Offers Proven Performance with Wide Frequency Response
• Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
• UL Certified, Safety Listed to UL1480 and UL2043
