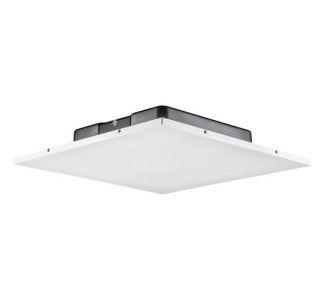

JBL Professional LCT 81C/T In-ceiling Speaker - 40 W RMS - White

Print JBL Professional LCT 81C/T In-ceiling Speaker - 40 W RMS - White pageRequest Bulk Pricing CAMCOR ITEM NO. 319900163 | MFG. PART NO. LCT 81C/T
JBL Professional LCT 81C/T In-ceiling Speaker - 40 W RMS - White
JBL Professional LCT 81C/T In-ceiling Speaker - 40 W RMS - White
Zoom
Close WindowZoom
Alternate View

We will gladly send you a quote for this item. Please click the link below to fill out the form and receive the quote via FAX or e-mail.

Get Quote

Become a registered user and view prices on all products

Usually ships in 1-3 business days

Product Highlights
Low-Profile Lay-In 2' x 2' Ceiling Tile Loudspeaker with 200 mm (8 in) Driver LCT 81C/T is a full-range ceiling speaker designed to lay into a 2 ft x 2 ft US-style suspended grid ceiling, with no ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Low-Profile Lay-In 2' x 2' Ceiling Tile Loudspeaker with 200 mm (8 in) Driver

LCT 81C/T is a full-range ceiling speaker designed to lay into a 2 ft x 2 ft US-style suspended grid ceiling, with no cutting of ceiling tiles required, making for an easy and cost-effective installation with a minimum of mess. The low profile depth of only 100 mm (4 in) allows the speaker to fit in locations where deeper loudspeakers do not.

This loudspeaker is designed to provide excellent performance for paging and light-to-medium music in a wide variety of applications, including education classrooms, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, meeting rooms, and more.

The very high sensitivity of 96 dB provides maximum sound level, even at low tap settings. LCT 81C/T contains a 200 mm (8 in) dual-cone driver with a very high 96 dB sensitivity. The driver features a 25 mm (1 in) diameter voice coil with a Kapton coil-former and high-temperature wire for better power dissipation and long-term reliability. The speaker's built-in 10 Watt transformer provides versatility by allowing use on 100V or 70V distributed loudspeaker lines, as well as at 8 ohms (low impedance) for driving directly from a low impedance power amplifier. Adjusting is convenient via a rotary switch on the side of the rear enclosure. Two safety seismic attachment tabs are provided for securing to ceiling deck, plus 4 holes are provided -- one in each corner. The color of the perforated grille is white.



Specifications

General Information
ManufacturerHarman International Industries, Inc
Brand NameJBL Professional
Product ModelLCT 81C/T
Product TypeSpeaker
Technical Information
RMS Output Power40 W
Driver Type7.87" Woofer
Minimum Frequency Response100 Hz
Maximum Frequency Response16 kHz
Impedance8 Ohm
Sensitivity96 dB
Physical Characteristics
ColorWhite
Form FactorIn-ceiling
Woofer Diameter7.87"
Weight (Approximate)15.65 lb
Miscellaneous
Package Contents
  • LCT 81C/T Speaker
  • Perforated metal grille
Environmentally FriendlyYes
Environmental CertificationWEEE
Warranty
Limited Warranty2 Year
