8 x 8 4K60 4:2:0 Matrix Switcher

Product Description

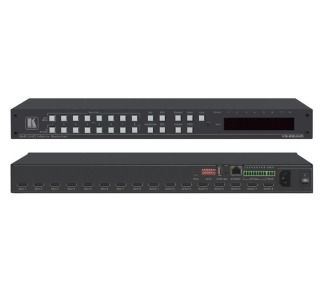

VS-88UHD is a high-quality 8x8 matrix switcher for 4K at 60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of eight HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-88UHD offers unmatched audio flexibility where any embedded digital input can be routed to any embedded digital output in addition to eight ARC sources to produce an equivalent 16x12 audio matrix.

• Maximum data rate - 8.91Gbps data rate (2.97Gbps per graphics channel)
• Maximum resolution - 4K at 60Hz (4:2:0)
• Independent 16x12 Audio Matrix - With 8 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 4 ARC outputs
• Kramer stepin over HDMI technology
• HDMI, HDCP and DVI compliance
• Selectable HDCP Off per Input
• Memory Locations - Eight presets for quick access to common configurations
• Advanced EDID Management per Input
• Active source and acceptor detection
• Automatic input selection - based on priority selection or last connected input
• HDMI Support - Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels
• Kramer reKlocking™ and Equalization Technology - Rebuilds the digital signal to travel longer distances
• Embedded pattern generator - with selectable patterns
• Lock Button - To prevent tampering
• Kramer Protocol 3000 support
• Firmware Upgrade - Via mini USB, Ethernet or the RS232 port
• Control Options - RS232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control
• Size - Standard 19" (1U). Rack "ears" included
• Applications:
• Control rooms with multiple displays
• Presentation and multimedia applications
• Systems that require automatic HDMI routing
