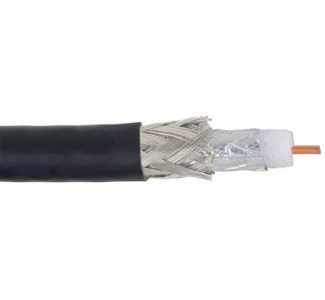

Black Serial Digital RG6 Dual Shield 4.5 Ghz Plenum Coaxial Cable

Print Black Serial Digital RG6 Dual Shield 4.5 Ghz Plenum Coaxial Cable pageRequest Bulk Pricing CAMCOR ITEM NO. 536005685 | MFG. PART NO. 18-CMP-VID-COAX-BLK1
Black Serial Digital RG6 Dual Shield 4.5 Ghz Plenum Coaxial Cable
Black Serial Digital RG6 Dual Shield 4.5 Ghz Plenum Coaxial Cable
Zoom
Close WindowZoom
Alternate View
Your Price: $1.41
Quantity

IN STOCK

Product Highlights
Black Serial digital RG6 dual shield 4.5 GHz plenum coaxial cable. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Black Serial digital RG6 dual shield 4.5 GHz plenum coaxial cable. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725, 800 and 820.

  • 18 AWG solid annealed bare copper conductor
  • Gas-injected cellular fluoropolymer dielectric
  • 100% coverage aluminum/poly/aluminum foil inner shield
  • 95% coverage tinned copper braid shield
  • Plenum rated PVC jacket
  • 4.5 GHz sweep, very low loss, excellent SRL
  • NEC CMP, CEC CMP FT6, RoHS compliant
  • 1000 foot spools

Specifications

Specifications

Cable Length1000 ft
Cable Length304.8000 m
Cable Length30479.9990 cm
Impedance75 ohm
Bend Radius2.37 inches
Capacitance16.0 pF
Conductor Diameter0.040 inches
Conductor Insulation Diameter0.170 inches
Conductor Insulation Thickness0.065 inches
DCR6.4 ohms
DCR (shield)2.29 ohms
Jacket Thickness0.016 inches
Overall Diameter0.237 inches
SRL 1-450 MHZ23 dB
SRL 451-850 MHZ21 dB
SRL 851-3000 MHZ15 dB
Temperature Range-10 to 60 °C
TEMPERATURE RATING60 °C
Voltage300 Vrms
VOP84 %
AC Voltage300 Volts

Product Dimensions

Product Weight42 lbs
