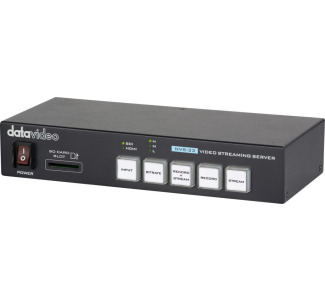

DataVideo NVS-33 H.264 Video Streaming Encoder and MP4 Recorder
CAMCOR ITEM NO. 622900305 | MFG. PART NO. NVS-33
Product Highlights
H.264 streaming and recording simultaneously Supports different bitrates for recording and streaming 1x SDI / HDMI input NVS-33 is a small, easy-to-use video streaming and recording equipment ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Product Description
H.264 streaming and recording simultaneously
Supports different bitrates for recording and streaming
1x SDI / HDMI input
NVS-33 is a small, easy-to-use video streaming and recording equipment designed for professional video producers.
Support RCA unbalanced audio input
Also support SDI / HDMI embedded audio
Streaming videos in RTMPS, RTMP, RTSP, and TS formats
Easy stream to YouTube, Facebook, and many other platforms.
Record on SD card
Easy to store. The NVS-33 can record MP4 or TS file to an SD card
Supports FAT /NTFS file system
Recording to SD Card with either NTFS and FAT file system to keep the continuous recording without file size limitation
Remotely controlled by Windows or Mac
Remotely controlled using a Windows / Apple PC or mobile device with a web browser.
Work Flow
Specifications
Video Input HDMI x1 SDI x1
Supported Video Input Resolution 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50 480i 59.94, 576i 50
Audio Input SDI & HDMI embedded audio RCA L/R x1
Encoding H.264/AVC, Main/High Profile
Video Bitrate Record Only: Up to 16Mbps (1080p50/60) Stream Only: Up to 10Mbps (1080p50/60) Rec+Stream: 10Mbps (1080p25/30)
Video Rate Mode CBR/VBR
Audio Mode Stereo/Mono
Audio Bitrate Stereo: 64~384Kbps Mono: 32~192Kbps
Streaming Protocols TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS
Recording File Format MP4, TS
Storage SD Card x1 (File System: NTFS, FAT)
Power Supply DC 12V
Dimension (LxWxH) 220 x 95 x 47 mm
Weight 0.7 kg
Operating Temp. Range 0~40 °C
