Digitalinx 2x8 HDMI Distribution Amplifier/ Splitter

Product Description

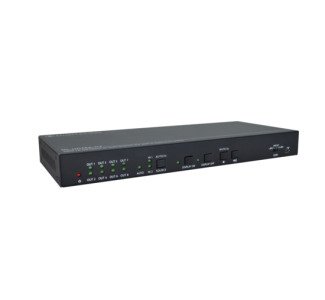

The Digitalinx DL-HD28A-H2 is an HDMI 2.0 compatible 2:8 auto scaling and auto switching HDMI distribution amp / splitter that features two HDMI inputs and either HDMI outputs. The splitters HDMI outputs can switch as a group to either input via auto or manual switching methods and supports down scaling so a 4K video input can automatically be down scaled to an 1080p output when connecting a display that only supports resolutions up to 1080p. The DL-HD28A-H2 supports 4K signals up to 4K at 60Hz / 4:4:4 / 8 bit color and features an easy EDID management option using dip switches on the rear panel of the unit. Analog and digital audio can be de-embedded from the selected HDMI input and the DL-HD28A-H2 supports CEC control and is HDCP 2.2 compliant. The DL-HD28A-H2 can be controlled via front panel buttons, RS232 or by TCP/IP control.

• HDMI 2.0 18G distribution amplifier
• 2 switchable HDMI 2.0 inputs and 8 HDMI 2.0 outputs
• Front panel button, RS232, or TCP/IP control for input selection
• Supports 4K60 8bit 4:4:4 color and HDR
• Audio de-embedding
• HDCP2.2 compliant
• Auto down scaling for maximum compatibility with mixed resolution displays
• Applications:
• HDMI distribution 2 inputs up to 8 outputs
• 2 sources shared to 8 displays as a group
• Digital signage
