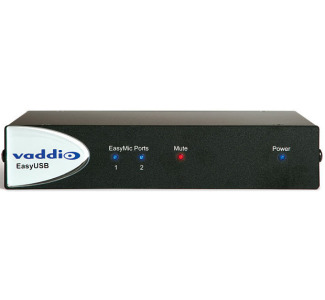

Vaddio EasyUSB Mixer/Amplifier

Name: Vaddio EasyUSB Mixer/Amplifier
Brand: Vaddio
Price: 1072.80 USD
Availability: InStock

Print Vaddio EasyUSB Mixer/Amplifier page

CAMCOR ITEM NO. 143000024 | MFG. PART NO. 999-8530-000

Product Highlights
The EasyUSB Mixer Amp supports up to two EasyTALK MicPOD microphones. In addition, analog line level I/O interfaces allow for integration with external AV equipment such as videoconferencing codecs, ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The EasyUSB Mixer Amp supports up to two EasyTALK MicPOD microphones. In addition, analog line level I/O interfaces allow for integration with external AV equipment such as videoconferencing codecs, external amplifiers or LCD displays. The EasyUSB Mixer Amp also has a 2 x 20 watt integrated audio amplifier for connection to external 4/8-Ohm speakers.

The EasyTALK USB uses a standard UAC driver, based on the guidelines set by the USB Implementers Forum, so you do not need to download any additional software or drivers. Instead, you just plug in each device and they work automatically with any operating system — Windows, Mac, Linux — you name it. It’s completely driver-free. They are designed as a truly plug-and-play audio solution for software-based conferencing systems.

Product Features

Supports up to two EasyMic Devices (MicPOD or Ceiling MicPOD) using RJ-45 & Cat. 5 for audio, control, and power (100 feet)
2 x 20 Watt Class-D amplifier with 2-Pin Euro Terminal
Connects to PC as a USB sound device
USB 2.0 Audio Class Device (UAC) / no drivers required
Auxiliary Line Input and Output
Unbalanced Line Input and Output (RCA)

Specifications

Audio Specifications	Frequency Response: 20 HZ to 20KHZ, Dynamic Range: >90dB, THD + Noise: <.02%
Analog Line Input	Connector: RCA (Unbalanced), Impedance:10Kohm, Nominal Level: -10dBu
Analog Line Output	Connector: RCA (Unbalanced), Impedance:10Kohm, Nominal Level: -10dBu
Amplifier	Connector: 2- Pin Molex Euro, Impendence: 8 ohm, Amplifier Output: 2X20 Watts, THD + Noise: <.2% at 1/3 power
USB Audio Interface	Connector: Type-B, PC Audio Controls: Mute & Volume, PC HID Controls: On/Off Hook
EasyMic Ports	Connectors: Two (2)- RJ 45-F, Proprietary Interface, 100’ (30.4m) Cat-5 Cable Distance Max
Audio Processing Settings	8-Position Dip Switch- Mixing Modes, Compressor, Filter, Delay
User Indicators	Communications Status, Mute, Power
Power Supply	18 VDC, 2.75 Amp
Serial Control Protocol	RS-232 (external control)
