CAMCOR ITEM NO. 607020252 | MFG. PART NO. C2G30018
Product Highlights
The Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

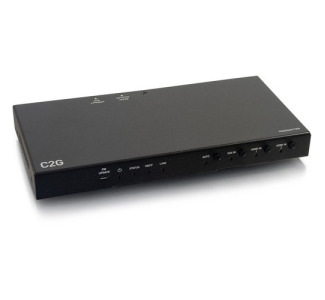

The Dual 4K HDMI HDBaseT + VGA, 3.5mm, and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard cabling.
Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
Supports VGA resolutions up to 1920x1200 at 60Hz
Supports automatic switching between input sources
HDCP 2.2 compliant, to create a secure connection between the source and display
All input audio source EDIDs are fixed at PCM 2CH
HDMI input EDIDs are copied from HDBaseT receiver (limited below 4K 30Hz)
VGA input EDID is fixed at 1080p 60Hz
All HDMI and VGA EDIDs can be configured by API CMD
Automatic CEC command to Power on/off display device, by detecting input signal status
Control and configure both local and remote devices via RS232
One-way IR pass through from the TX to the connected RX
Bi-directional PoC, one power adapter at either transmitter or receiver side can power both units
HDBaseT Chipset VS010, for simpler HDBaseT installations
