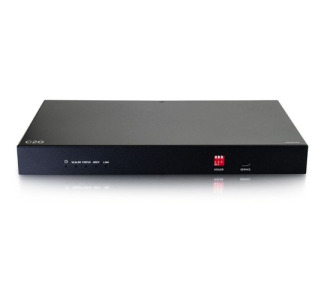

HDBaseT HDMI RS232 IR Scaling RX Box

Product Description

The HDMI HDBaseT + RS232 and IR over Cat Extender Box Scaling Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 328ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where HDMI video and audio need to be extended to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

• Extend 4K at 30Hz (4:4:4) up to 328ft with Cat 6a cable
• Extend 4K at 30Hz (4:4:4) up to 230ft and 1080p at 60Hz up to 328ft with Cat 5e/6 cable
• Supports scaling resolution configuration for the HDMI output through DIP Switch and API commands
• Built-in scaler supports up to 4K at 60Hz
• HDCP 2.2 compliant, to create a secure connection between the source and display
• Audio de-embedded output with S/PDIF and analog stereo options from HDMI signal
• RS232 port available for device control or bi-directional RS232 pass-through (default setting)
• Supports bi-directional IR pass-through
• One-way PoC to provide power to the transmitter with PD module via Cat cable
• Supports firmware upgrade via the Micro USB port (for scaler only)
• HDBaseT Chipset VS100, for simpler HDBaseT installations
• Works with C2G30014, C2G30017, and C2G30018 transmitters
