Product Highlights
The TP?576 is a DGKatâ„¢ twisted pair line driver for HDMI, bidirectional RS?232 and infrared signals. The unit receives an HDMI signal either from a local HDMI source or from a compatible ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

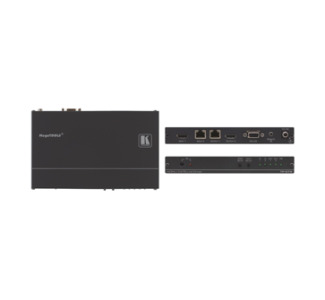

The TP?576 is a DGKatâ„¢ twisted pair line driver for HDMI, bidirectional RS?232 and infrared signals. The unit receives an HDMI signal either from a local HDMI source or from a compatible twisted pair transmitter. It decodes the selected signals to the local HDMI, RS?232 and IR outputs and simultaneously transmits them to a compatible twisted pair receiver.
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
DGKat™ Signal Integration - Kramers unique technology for converting
TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
HDMI Support - Deep Color (on the HDMI input), x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.3D Pass-Through.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
HPD Pass Thru - Passes hot plug detect signals from display to source.
Active Input/Output LED Indicators.
Flexible Control - Front panel, RS-232 & IR switching.
Power Connect™ System - A single connection to the TP-576 powers the transmitter, receiver and line driver units.
Compact MegaTOOLS™ - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.
Login to My Camcor Account
CAMCOR ITEM NO. 384053829 | MFG. PART NO. TP-576
