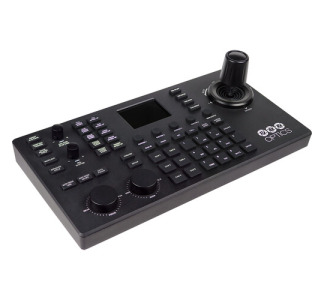

HUDDLECAM PT-SUPERJOY-G1 IP & Serial PTZ Camera Joystick Controller | PTZOptics
CAMCOR ITEM NO. 757000062 | MFG. PART NO. PT-SUPERJOY-G1
Product Highlights
Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics. The SuperJoy offers joystick and button control for up to ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Control up to 28 PTZ cameras using NDI, IP, or serial with the SuperJoy NDI|HX/IP & Serial PTZ Camera Joystick Controller from PTZOptics. The SuperJoy offers joystick and button control for up to 28 PTZ cameras, in four groups of seven cameras each, with support for NDI, VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen.
The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras. An HDMI output allows you to send the camera video to a remote streaming unit, and the status information can also be included in the output. Other features include glowing buttons for working in the dark, 255 camera presets, nine quick presets, and four super preset buttons. You can import and export configurations using IP or via the USB port.
The SuperJoy supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and 12 VDC power supply, or it can be powered using Power-over-Ethernet (PoE).
Features
Limited NDI|HX and Sony control
IP, RS-232, RS-422, and RS-485 communication
VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols
Camera on-screen display control
Control four groups with up to seven cameras in each group for a total of 28 cameras
Control multiple different PTZ camera brands simultaneously, including HuddleCamHD, PTZOptics, Sony, BirdDog, and NewTek
Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly
255 presets, nine quick presets, four super presets
Exposure and white balance control
Four customizable buttons using TCP, UDP, and HTTP control
Program and RTSP output via HDMI
Power-over-Ethernet (PoE) support
Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock
