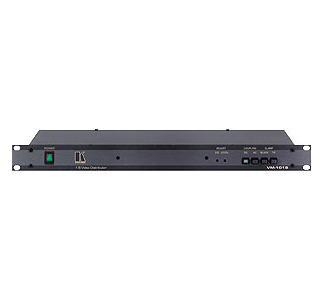

KRAMER 1:5 Video Distribution Amplifier

Name: KRAMER 1:5 Video Distribution Amplifier
Brand: Kramer Electronics
Price: 312.00 USD
Availability: InStock

Print KRAMER 1:5 Video Distribution Amplifier page

CAMCOR ITEM NO. 384051008 | MFG. PART NO. VM-1015

Product Highlights
The KRAMER VM-1015 is a full broadcast, state-of-the-art 1:5 Video Distribution Amplifier designed for studio and other demanding applications. The VM-1015 splits a single input source into five ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The KRAMER VM-1015 is a full broadcast, state-of-the-art 1:5 Video Distribution Amplifier designed for studio and other demanding applications. The VM-1015 splits a single input source into five identical outputs with no discernible signal degradation.

Output signals can either be AC or DC coupled, black level or sync tip clamped, allowing the machine to function in all video environments. The machine may be used to distribute analog or SDI (Serial Digital) video signals, composite or single component. Video bandwidth of well over 340MHz and superb specifications make the VM-1015 the ultimate distributor for all video applications.

Specifications

Inputs	1 video composite or single component, looping, 1Vpp/75Ω on BNC connectors with termination switch.
Outputs	5 composite/component Video, 1 Vpp/75Ω on BNC connectors.
Video Bandwidth (-3db)	340 MHz.
Diff. Gain	0.08 %.
Diff. Phase	0.12 Deg.
K-factor	0.05%.
Non-linearity	0.1%.
Video S/N Ratio	Better than 75dB.
Gain Control	-1.2dB to +2.8dB (through a trimmer on the front panel).
Eq. Control	0 to 2.7dB @ 4.4MHz.
Control	75Ω termination switch.
Coupling	AC, DC - user selectable with one of four front panel switches.
Dc Clamp	0 VDC black level, or sync bottom TIP.
Power Source	230VAC 50/60 Hz (115V U.S.A.), 4.6 VA.
Dimensions	19 inch (W), 7 inch (D) 1U (H) rack mountable.
Weight	2.5 kg, (5.5 lbs.) approx.
Accessories	Power cable.
