Product Highlights
Kramer 1:3 Composite (U) & Stereo Audio Distribution Amplifier 103AV The Kramer 103AV is a compact distribution amplifier for composite video and unbalanced stereo audio signals. It will take one ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Kramer 1:3 Composite (U) & Stereo Audio Distribution Amplifier 103AV

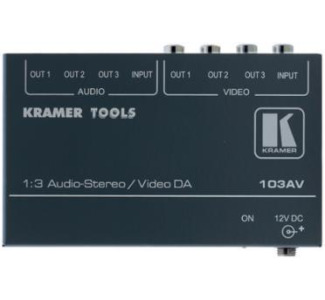

The Kramer 103AV is a compact distribution amplifier for composite video and unbalanced stereo audio signals. It will take one input, provide correct buffering and isolation and distribute the signal to three identical outputs.

(cc)

Product Features
  • High Bandwidth - 320MHz (- 3dB)
  • Compact Size - Part of the Kramer TOOLSTM family of compact, high quality and cost effective solutions

Specifications

Specifications

General
Input 1 composite video, 1Vpp/75Ω on an RCA connector. 1 audio stereo, 1Vpp/33 kΩ on 3.5-mm mini phone connector
Outputs 3 composite video, 1Vpp/75Ω on RCA connectors. 3 audio stereo, 1Vpp/50Ω on 3.5mm mini phone connectors
Max. Video Output 2 Vpp.
Video Bandwidth (-3DB) 320MHz
Audio Bandwidth (-3DB) 20kHz
Diff. Gain 0.1%
Diff. Phase 0.16 Deg
K-Factor 0.05%
Video S/N Ratio 72dB
Audio S/N Ratio 85dB Unweighted
Crosstalk -70dB @ 20kHz
Video Coupling AC
Audio THD+Noise 0.02%
Power Source 12 VDC, 100mA
Dimensions 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W,D,H)
Weight 0.28 kg. (0.62 lbs.) approx.
Accessories Power supply, mounting bracket.
Options RK-T1, RK-T3 19 inch rack adapter
