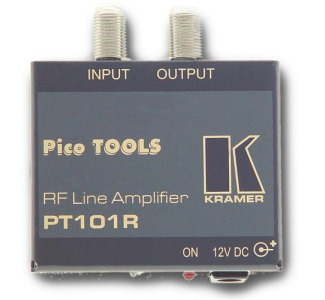

Kramer High Performance Line Amplifier PT-101R

Name: Kramer High Performance Line Amplifier PT-101R
Brand: Kramer Electronics
Price: 88.00 USD
Availability: InStock

Print Kramer High Performance Line Amplifier PT-101R page

CAMCOR ITEM NO. 384051006 | MFG. PART NO. PT-101R

Kramer High Performance Line Amplifier PT-101R

Product Highlights
The Kramer PT-101R is a high performance, ultra large bandwidth RF line amplifier. It accepts a single RF input such as a typical CATV/MATV signal and amplifies it for long cable and remote ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The Kramer PT-101R is a high performance, ultra large bandwidth RF line amplifier. It accepts a single RF input such as a typical CATV/MATV signal and amplifies it for long cable and remote distribution uses. Extra wide bandwidth of up to 3000MHz (3GHz) and exceptional low noise ensures that the unit remains transparent in the most critical applications.

The input and output are matched to 75Ω impedance. A 12V power supply is included, but the optional VA-50P can power up to six Kramer devices requiring 12VDC. The PT-101R is part of the Kramer PicoTOOLSTM family of compact, high quality, and cost effective solutions for a variety of applications.

Specifications

Input	1 RF/75 ohms, on an "F" type connector.
Output	1 RF/75 ohms, on an "F" type connector.
Bandwidth (-3db)	40-3000MHz.
Coupling	AC.
RF Gain	+ 20dB typical across band.
Noise Figure	3.5dB.
Power Source	12 VDC, 78.8mA.
Dimensions	6cm x 6.5cm x 2.5cm (2.36" x 2.56" 1", W, D, H.).
Weight	0.1kg (0.22 lbs.) approx.
Accessories	Power supply, mounting bracket.
Options	Model VA-50P power supply with six 12VDC outlets.
