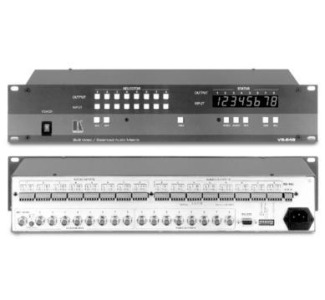

Kramer VS-848 8x8 Matrix Switcher

Name: Kramer VS-848 8x8 Matrix Switcher
Brand: Kramer Electronics
Price: 1156.00 USD
Availability: InStock

Print Kramer VS-848 8x8 Matrix Switcher page

CAMCOR ITEM NO. 384051020 | MFG. PART NO. VS-848

Product Highlights
The VS-848 is a high performance matrix Switcher for composite video and Balanced stereo Audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The VS-848 is a high performance matrix Switcher for composite video and Balanced stereo Audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

(cc)

Product Features

Bandwidth - 200MHz (-3dB) fully loaded
Control - Front panel, RS-232 (K-Router™ Windows® - based software is included), & RS-485
Take Button - Execute multiple switches all at once
Memory Locations - Store multiple switches as presets to be recalled and executed when needed
Audio Breakaway Switching
Vertical Interval Switching
Switching Synchronization - Sychronize either to external reference or the incoming video
Selectable Sync Signal Termination
Standard 19" Rack Mount Size - 2U

Specifications

Inputs: 8 composite video, 1Vpp/75Ω on BNC connectors.1 Sync/Video Genlock 1Vpp/75Ω with sync select switch. 8 balanced
Outputs: 8 composite video, 1Vpp/75Ω on BNC connectors. 8 balanced audio stereo, +4dBm/50Ω (24 Vpp max.) on detachable terminal blocks
Maximal Audio: 24 Vpp (>20 dBm)
Video Bandwidth (-3dB): 200MHz
Audio Bandwidth (-3dB): 100kHz
Non Linearity: 0.1%
Diff. Gain: 0.05%
Diff. Phase: 0.03º
K-Factor: 0.05%
Video S/N: 74dB
Audio S/N: 84dB Unweighted (1Vpp)
Video Crosstalk: -50dB @ 5MHz
Control: Manual, RS-232 or RS-485
Audio THD: 0.025% (1V, 1kHz)
2nd Harmonic: 0.013%
Switching: Vertical interval
Power Source: 230 VAC, 50/60 Hz, (115VAC, U.S.A.), 14 VA
Dimensions: 19"w x 7"d x 2Uh rack mountable
Weight: approx. 7.8 lbs.
Accessories: power cord, Windows® - based control software, Null modem adapter
