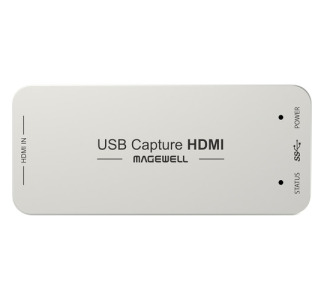

Magewell USB Capture HDMI (Gen 2) Dongle 1-channel

Name: Magewell USB Capture HDMI (Gen 2) Dongle 1-channel
Brand: Magewell
Price: 299.00 USD
Availability: InStock

Print Magewell USB Capture HDMI (Gen 2) Dongle 1-channel page

CAMCOR ITEM NO. 316000001 | MFG. PART NO. 32060

Magewell USB Capture HDMI (Gen 2) Dongle 1-channel

Product Highlights
For your HDMI recording and streaming needs, this dongle has you covered with resolutions up to 1920 x 1200 at 60p, auto and manual up- or down-scaling, frame rate conversion, and de-interlacing in ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

For your HDMI recording and streaming needs, this dongle has you covered with resolutions up to 1920 x 1200 at 60p, auto and manual up- or down-scaling, frame rate conversion, and de-interlacing in real time with its own hardware, for a process that's light on your CPU and heavy on functionality.

This unit uses the drivers your computer already has, requiring no additional installs or downloads, meaning it will work with any software that you're already working with. And in the event that you don't have a USB 3.0 port available, which this device is optimized to use, a USB 2.0 port will do the trick, even if that does mean some restrictions in resolution and frame rate due to bandwidth limits.

If you run into trouble, the device has an excellent one-click troubleshooting system to capture all the relevent info for tech support, making it easier than ever to get things up and running once again.

Features

• Capture footage in real HD
• Compatible with Windows
• Compatible with Linux
• Compatible with Mac OS X
• Plug and Play
• Support UVC Protocol
• Up/down Scaling
• Deinterlacing
• Image Control
• Various Output Color Spaces
• Firmware Upgrade
• Compatibility with Software
• Continuously Work for 24h x7
• Multiple devices on one host
• 1-year Warranty

Specifications

Host Interface	USB 3.0, 300-350MB/s throughput USB 2.0 40MB/s throughput
HDMI Input	HDMI 1.4a standard, and support up to 1080p/60Hz 8-bit, (RGB, YUV)
Output Resolutions	Resolutions: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 / 1280×720 / 1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200 / 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540 / 1024×576 Frame-rate: 25/29.97/30/50/59.94/60 fps
Sampling Rate	HDMI: 165 MHz
USB Standard	Meets the standards of UVC (USB video class) and UAC（USB audio class）
Color Space	YUY2, RGB24 Hardware adjustable
Scaling	Hardware based
Image Adjustment	Brightness, contrast, hue, saturation
Operating System	Windows 7 (x86 and x64 version) Windows Server 2008 R2 Windows 8 Windows 8.1 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above)
Software Compatibility	Windows Media Encoder (Windows) Adobe Flash Media Live Encoder(Windows, OS X) Real Producer Plus(Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X) Wirecast (Windows, OS X)
APIs	DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux)
Onboard Memory	64MB DDR2, 16 bits at 300 MHz
Upgradeable Firmware	Yes
Power Consumption	<= 2.5W
Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Relative Humidity	5 - 90%
Dimensions	3.3 x 1.7 x 0.5" / 84 x 43 x 13 mm
