Substation PCB

Print Substation PCB pageRequest Bulk Pricing CAMCOR ITEM NO. 685910360 | MFG. PART NO. N-8050SB
Substation PCB
Substation PCB
Zoom
Close WindowZoom
Alternate View
Quantity

Click for your price

Close Window

Usually ships in 1-3 business days
Free ShippingQualifies for
FREE SHIPPING (?)

This item Qualifies towards Free Shipping!

Items marked with this Freight Saver symbol have FREE shipping (via UPS Ground Service within the Continental US) when $ 79.00 or more of designated Freight Saver items are purchased on the same internet order.

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
N-8050SB is printed circuit board unit for N-8050DS door station. Make sub station suitable for applications using N-8050SB in combination with the operation panel section to be prepared separately. ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

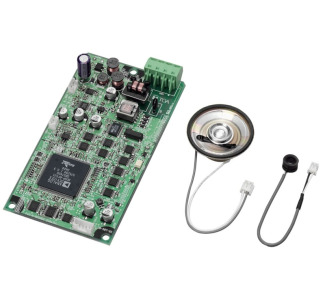

N-8050SB is printed circuit board unit for N-8050DS door station. Make sub station suitable for applications using N-8050SB in combination with the operation panel section to be prepared separately.

  • Supports full-duplex communication
  • Speaker and microphone included
  • Control output (open collector)
  • Call switch input
  • LED status indicator output
  • N-8050DS PCB for custom station applications

Back to Top

Specifications

Specifications

Operating Temperature (Maximum)122.0000 F
Operating Temperature (Maximum)50 C
Operating Temperature (Minimum)-10 C
Operating Temperature (Minimum)14.0000 F
Audio Frequency Range300 to 7000 Hz
Maximum transmission range1500 m
Operating HumidityUnder 90% RH
Power Consumption2.4 W
Power Source48 VDC

Product Dimensions

Depth1.0236 in
Height5.0512 in
Product Weight0.22 lbs
Width2.6378 in
