Shure BLX14/CVL Lavalier Wireless Microphone System (H10: 542 - 572 MHz)

Print Shure BLX14/CVL Lavalier Wireless Microphone System (H10: 542 - 572 MHz)  pageRequest Bulk Pricing CAMCOR ITEM NO. 136019062 | MFG. PART NO. BLX14/CVL-H10
Shure BLX14/CVL Lavalier Wireless Microphone System (H10: 542 - 572 MHz)
Shure BLX14/CVL Lavalier Wireless Microphone System (H10: 542 - 572 MHz)
Zoom
Close WindowZoom
Alternate View

MSRP: 419.00
Savings: $90.00

Your Price: $329.00
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
The BLX14/CVL Lavalier Wireless System is part of the BLX wireless systems family. Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The BLX14/CVL Lavalier Wireless System is part of the BLX wireless systems family.

Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

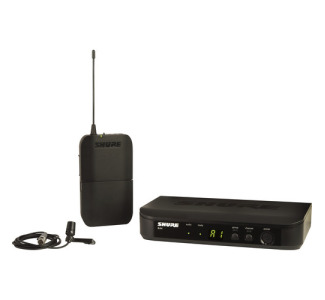

Includes BLX4 wireless receiver, BLX1 bodypack transmitter, CVL lavalier microphone, power supply, lavalier clip, windscreens, and user guide.

Specifications

CVL Centraverse Lavalier Condenser Microphone
  • Type Electret condenser
    Frequency Response 50 Hz to 20 kHz
    Polar Pattern Cardioid
    Output Impedance 600 Ω @ 1 kHz, typical
    Audio Output Level -43.5 dBV/Pa
    Signal to Noise Ratio 72 dB @ 1 kHz
    Maximum SPL 139 dB, @ 1 kHz (1,000 Ω load)
    Dynamic Range 117 dB, @ 1 kHz (1,000 Ω load)
    Output Noise 22 dB, typical, A-weighted
    Power Requirements +5 V DC (nominal), 10 V maximum (DC bias)
    Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
    Cable 50" (1.3 m)
    Connector TA4F
    Weight 0.88 oz (25 g)
    Packaging Info
    Package Weight 0.3 lb
    Box Dimensions (LxWxH) 7.7 x 5.0 x 3.1"

BLX4 Single-Channel Wireless Receiver (H10: 542 - 572 MHz)

  • Output 1x XLR Output
    1x 1/4" (6.35 mm) Output
    Output Impedance XLR: 200 ohms
    1/4": 50 ohms
    Audio Output Level XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
    1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
    RF Sensitivity -105 dBm for 12 dB SINAD, Typical
    Image Rejection >50 dB, Typical
    Housing Molded ABS
    Power Requirement 12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)
    Dimensions (H x W x D) 1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)
    Weight 8.5 oz (241 g)
    Packaging Info
    Package Weight 2.5 lb
    Box Dimensions (LxWxH) 13.5 x 12.0 x 3.8"

BLX1 Bodypack Transmitter (H10: 542 - 572 MHz)
  • Audio Input Gain: -16 dBV (Maximum), 10 dBV (Minimum)
    Gain Adjustment Range 26 dB
    Input Impedance 1 MOhm
    RF Output 10 mW, Typical
    Housing Molded ABS
    Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
    Battery Life Up to 14 Hours
    Dimensions (H x W x D) 4.3 x 2.5 x 0.8" (110 x 64 x 21 mm)
    Weight 2.6 oz (75 g)
    Packaging Info
    Package Weight 0.7 lb
    Box Dimensions (LxWxH)
