Antenna Distribution System

Print Antenna Distribution System pageRequest Bulk Pricing CAMCOR ITEM NO. 136019956 | MFG. PART NO. UA844+V
Antenna Distribution System
Antenna Distribution System
Zoom
Close WindowZoom
Alternate View
Alternate View

MSRP: 860.00
Savings: $246.00

Your Price: $614.00
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
The Shure Model UA844+V is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

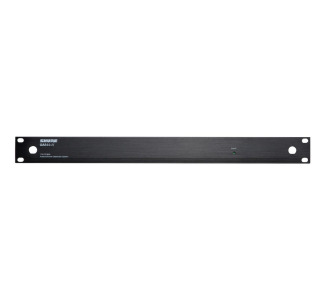

The Shure Model UA844+V is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+V system can support up to five wireless receivers. A maximum of five UA844+V systems may be used in a two-tiered configuration.
It is recommended for use with VHF options of ULX-D® Digital, available now, and VHF options of QLX-D® Digital Wireless Systems, coming soon.
The UA844+V/LC option comes with four push-on DC cables with no antenna cables. To connect the receiver antenna ports to the UA844+V/LC, use the BNC-BNC antenna cables supplied with each of the ULX-D and QLX-D wireless systems.

  • Five-way RF signal output
  • Supports VHF QLX-D® (coming soon) and ULX-D® (available now) receivers
  • Front-mounting antenna hardware
  • Rack-mounting hardware
  • 4 DC power feeds and for receivers (15V, 2.5A max)
  • DC outputs for antenna bias (12V, 300mA max)
  • UA844+V models include:
  • 1 UA844+ Antenna/Power Distribution System
  • 1 PS45 power supply
  • Two 6 ft. BNC cables
  • 2 Bulkhead adapters
  • 1 Rack mount Hardware kit
  • 1 Literature Package
  • 4 Locking DC power cables for ULXD4
  • 4 Non-locking DC power cables for QLXD4
  • Ten 22 in. BNC cables
  • UA844+V/LC (less cable) models include:
  • 1 UA844+ Antenna/Power Distribution System
  • 1 PS45 power supply
  • Two 6 ft. BNC cables
  • 2 Bulkhead adapters
  • 1 Rack mount Hardware kit
  • 1 Literature Package
  • 4 Non-locking DC power cables for QLXD4
  • Two 22 in. BNC cable
