4-Channel Stereo MiniMix Pro Microphone/Source Mixer

Name: 4-Channel Stereo MiniMix Pro Microphone/Source Mixer
Brand: Rolls
Price: 149.00 USD
Availability: InStock

Print 4-Channel Stereo MiniMix Pro Microphone/Source Mixer page

CAMCOR ITEM NO. 342012044 | MFG. PART NO. MX122

4-Channel Stereo MiniMix Pro Microphone/Source Mixer

Product Highlights
The MX122 is a five channel audio mixer which combines a single microphone signal with four stereo instrument or line level signals. The XLR Microphone input has a trim control and switchable +12 VDC ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

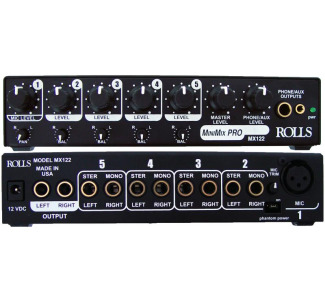

The MX122 is a five channel audio mixer which combines a single microphone signal with four stereo instrument or line level signals. The XLR Microphone input has a trim control and switchable +12 VDC phantom power available. The unit is ideal for musicians needing to mix stereo keyboards and sound modules with a single microphone.

1 XLR Mic Input with rear panel Trim control, balanced
4 individual 1/4" Stereo Inputs
Balanced 1/4" TRS Outputs
Balance control on each channel (Pan on the Mic channel)
Headphone / Auxiliary Outputs
+12VDC Phantom Power
External Power Supply included for low noise operation

Specifications

Signal to Noise Ratio	90 dB
Total Harmonic Distortion + Noise (THD+N)	0.004 %
IMD (SMPTE)	< 0.004 %
Input Impedance (Line)	10 kohms
Input Impedance (mic)	10 kohms
Max Input Level (Line)	+24 dBV
Max Input Level (Mic)	-8 dBV
Mic CMRR	95 dB
Output Impedance	50 ohms
Phantom Power Voltage	+12 VDC
Phase Shift	< 10 deg
Self Noise	< - 82 dB
Current Draw	0.04 Amps
DC Voltage	12 Volts
