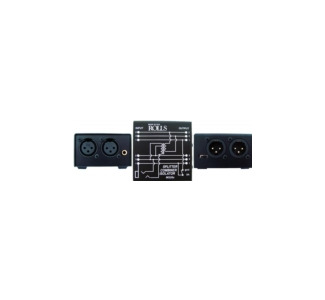

Mic Splitter/Combiner/Isolator

Name: Mic Splitter/Combiner/Isolator
Brand: Rolls
Price: 59.00 USD
Availability: InStock

Print Mic Splitter/Combiner/Isolator page

CAMCOR ITEM NO. 342012017 | MFG. PART NO. MS20C

Product Highlights
The MS20c Splitter / Combiner / Isolator will split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals together into a single, or simply isolate a balanced line ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

The MS20c Splitter / Combiner / Isolator will split a single balanced XLR signal into two isolated signals, combine two balanced XLR signals together into a single, or simply isolate a balanced line for buzz or hum elimination. When combining two condenser microphones, phantom power voltage is passed to only one of the microphones due to the internal isolation transformer.

Splits balanced XLR input, or 1/8" input to two balanced XLR
Combines two balanced XLR signals to one XLR output
One signal is transformer isolated from the other
Ground Lift switch for noise elimination

Specifications

Minimum Frequency Response (Bandwidth)	35 Hz
Minimum Frequency Response (Bandwidth)	0.0350 kHz
Maximum Frequency Response (Bandwidth)	20000.0000 Hz
Maximum Frequency Response (Bandwidth)	20 kHz
Output Impedance	600 ohms
Max Level	+26 dBm
