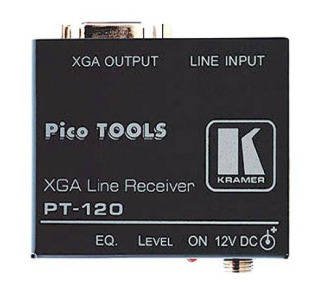

Comprehensive / Kramer PT-120 Computer Graphics Video Receiver

Product Highlights
Comprehensive / Kramer PT-120 Computer Graphics Video Receiver with VGA/UXGA HD-15 Connector - Sends Signal Over Twisted-Pair Network CableThe Comprehensive / Kramer PT-120 Receiver is a component of ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

Comprehensive / Kramer PT-120 Computer Graphics Video Receiver with VGA/UXGA HD-15 Connector - Sends Signal Over Twisted-Pair Network Cable

The Comprehensive / Kramer PT-120 Receiver is a component of an array of products intended to extend the reach of computer video cables, dramatically increasing the distance between source and monitor. This allows a user to cleanly extend their studio, video, and security applications beyond the short cabling that restricts the spacing of devices. Using a compatible transmitter, the PT-120 can accept a video signal that has been converted by the transmitter into a feed that is sent down a twisted-pair (ethernet) cable. Any CAT5 network cable can be used to link Tx and Rx at a distance up to 328' (100 m). One added convenience is the Power Connect system, which allows both Tx and Rx to receive power from a single source; this feature requires both units to have the Power Connect system.
The PT-120 works in conjunction with the following transmitters:

PT-110

TP-104

TP-105

TP-112HD

VP-12N

VP-12NHD

VP-200XLT

VP-23N

VP-23RC

VP-300T

VP-5T

VP-6A

TP-114

TP-210

Product Features

System Range up to 328' (100 m). Greater distances are possible, depending on signal resolution and cable.
Power Connect System - Only one unit in an array, the Tx or Rx, needs to be connected to a power source. All the system units must have the Power Connect system in order to use this feature
Capable of handling HDTV resolution
Level (gain) & EQ (peaking) controls, to fine tune signal
Horizontal and vertical polarity selection
Up to UXGA resolution
Uses readily-available UTP (unshielded twisted pair) cable such as CAT5
Part of the PicoTOOLS family of extremely compact, high-quality and cost-effective electronic solutions

Specifications

General

Input	1x RJ-45 Twisted-pair network cable jack - female
Output	1x VGA/UXGA standard 15-pin female connector
Output Level	1.5 Vpp max
Bandwidth	150 MHz - full load
S/N Ratio (Video)	69 dB
Power Input	12 VDC - 175 mAh
Dimensions (WxDxH)	2.36 x 2.56 x 1.0" (6.0 x 6.5 x 2.5 cm)
Weight	0.31 lb (0.14 kg)
