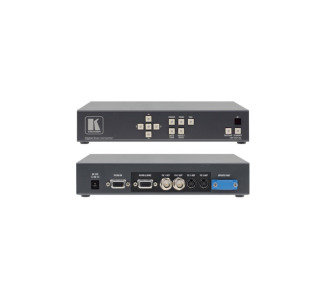

Kramer VP-701XL UXGA Scan Converter
The VP-701xl is a scan converter for computer graphics video signals. It converts a computer graphics video signal up to 2048x2048 or an HDTV signal to two ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
The VP-701xl is a scan converter for computer graphics video signals. It converts a computer graphics video signal up to 2048x2048 or an HDTV signal to two composite and two s-Video (Y/C) signals simultaneously in either PAL or NTSC formats.
Product Features
AutoTrak™ Auto Set Up Technology - One button auto setup that automatically sizes, shifts, and centers any input image on the display device.
Multi-Standard Output - PAL or NTSC (selectable).
Input Compatibility – Up to 2048x2048 and 1080p HD.
Looping Input.
HDTV Compatible.
Output - 2 CV on BNC connectors, 2 Y/C on 4p connectors.
Flicker Reduction - 2, 4 or 6-line Flicker reduction (selectable).
Freeze Frame.
Front Panel Control Lockout.
Aspect Ratio - 3 settings.
10x Zoom & Pan - to 1000%.
Desktop Size - Compact size. Can be rack mounted in a 1U rack space with the optional RK-701xl adapter.
Analog RGB/YPbPr on 15-Pin HD connectors into 75Ω,
supporting RGBHV, RGsB, YPbPr, auto-terminating into 75Ω
Digital sync (in RGBHV mode): TTL Level, 10K termination, pos or negative
Analog sync (in RGsB, YPbPr, YUV modes): 0.3V negative.
RGB Level Range: 0.5-2.0Vpp
Scan Rate Detection: automatic
PC Resolutions: any up to 2048x2048
HDTV Resolutions: any up to 1080p
Max horizontal scan rate: 150kHz
Video Output
Composite Video 1Vpp on BNC connectors.
S-Video (YC) 1Vpp on 4-pin mini-DIN connectors
CV/YC Video encoder: 8/10-bit Digital Output impedance 75Ω
Television standards supported: NTSC and PAL.
Computer Outputs
RGBHV loop
Control Methods
The unit can be controlled locally via the front panel buttons and on-screen display (OSD) or remotely via the Infrared remote using the Infrared remote unit.
Scaling / Sampling / Memory
Size and position: automatic via AutoSet or Manual
Image size: user-definable presets
Image freeze: one video frame
Settings memory: non-Volatile
Zoom range: variable to 10x Zoom (1000%)
Firmware memory: flash, upgradeable via RS-232
Power Requirement
External power supply: 12V DC @1A maximum.
Actual current consumption varies between units.
Internal over-voltage & over-current protection.
Full PSU specification: 12V DC regulated 1Amp PSU with a 2.5mm locking center-pin positive DC power connector. A non-locking 2.5mm DC power connector will also fit.
Weight
1.8kg (3.97lbs) approx.
Dimensions
18.4cm x 10.2cm x 3.2cm (7.25” x 4” x 1.25” ) W, D, H
