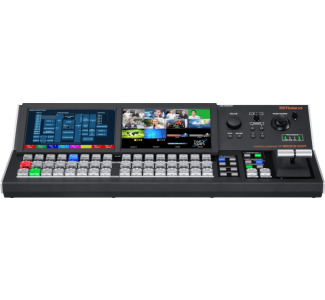

Control Surface for V-1200HD Multi-format Video Switcher

Print Control Surface for V-1200HD Multi-format Video Switcher pageRequest Bulk Pricing CAMCOR ITEM NO. 608006137 | MFG. PART NO. V-1200HDR
Control Surface for V-1200HD Multi-format Video Switcher
Control Surface for V-1200HD Multi-format Video Switcher
Zoom
Close WindowZoom
Alternate View

MSRP: 5150.00

Your Price: $5150.00
Quantity

Product Highlights
Switch using the V-1200HDR Control Surface or free downloadable Remote Control Software (RCS). The video inputs and the powerful built-in 16-channel audio mixer can be expanded with XI-Series video ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Switch using the V-1200HDR Control Surface or free downloadable Remote Control Software (RCS). The video inputs and the powerful built-in 16-channel audio mixer can be expanded with XI-Series video and audio expansion cards. An intuitive user interface with assignable cross-points and on screen names ensures maximum flexibility for and live production or broadcast.This is the highest-performance operation style, capable of using PGM/PST rows as the final stage in addition to 1 M/E. All four keyers can be used in 1 M/E. You can freely change the priority of each keyer, and even copy keyers. This mode enables complex mixing operations such as a video source plus 4-layers of composition and transition functions to another single video source.This provides a standard 2 M/E operation style. Two keyers can be used with each M/E. Keyer priority can also be assigned and changed. Not only is re-entry of the video source from M/E 1 to M/E 2 possible, but so is reverse re-entry from M/E 2 to M/E 1. Each of the two M/Es can be output independently allowing for applications such as simultaneous transmission of captions in two different languages.

  • 10 SDI and 4 HDMI inputs, and 6 SDI and 2 HDMI outputs
  • 4:2:2/4:4:4 hybrid engine
  • The 4:2:2/10-bit processor is 2 M/E switcher that is able to switch 2 M/E, 1.5 M/E, and 1 M/E.
  • The 4:4:4/10-bit multi-format processor supports live presentation, split-screen, and matrix output.
  • 4K switching mode
  • Up to 92 Inputs/Outputs 16-channel audio mixer
  • Control of up to 4 remote cameras
  • Optional control surface with T-bar and dual displays.
  • All switcher functions can be operated from a computer using remote control software, V-1200HD RCS
  • Input/output expandable via expansion slots

Specifications

Specifications

Operating Temperature (Maximum)104.0000 F
Operating Temperature (Maximum)40 C
Operating Temperature (Minimum)0 C
Operating Temperature (Minimum)32.0000 F
Current Draw2.5 Amps
DC Voltage12 Volts

Product Dimensions

Depth9.3110 in
Height4.1457 in
Product Weight9.4799 lbs
Width20.2362 in
