The Digitalinx DL-1H1A1U-WPKT-W HDBaseT 2.0 extender set transmits HDMI, audio, USB high speed (up to 190Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1U-WPKT-W can transmit ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

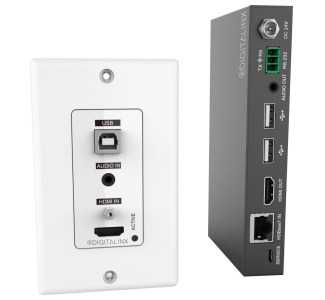

The Digitalinx DL-1H1A1U-WPKT-W HDBaseT 2.0 extender set transmits HDMI, audio, USB high speed (up to 190Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1U-WPKT-W can transmit 4K resolutions up to 4K at 60Hz, 4:2:0 up to 40m/120? and 1080P up to 70m/230?. The audio circuit is completely separate and is not dependent on the HDMI or USB input source to be active. The Digitalinx DL-1H1A1U-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant and supports CEC pass through. The DL-1H1A1U-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate.

  • HDMI, 3.5mm audio, USB-B 2.0 high speed extender set
  • Supports Video up to 4K2K at 30Hz (4:4:4), 4K2K at 60Hz (4:2:0) 10.2G
  • Pass-through 3.5mm analog audio passes audio independent of HDMI port
  • Extend USB 2.0 high speed up to 190Mbps
  • Receiver features HDMI output, 3.5mm audio output and 2 USB-A ports
  • Supports HDCP 2.2 and HDCP 1.4 compliant
  • Supports all HDMI audio formats
  • Single cable 40m for 4K/70m for 1080P
  • RS232 and CEC pass-through
  • Dedicated 3.5mm audio independent from the HDMI signal
  • Remote power from receiver to wall plate transmitter
  • TX is standard US 1-gang decorator format
  • Includes:
  • DL-1H1A1U-WPKT-W wall plate extender set, quick install guide, (1) decora cover plate, (1) 3-pin phoenix connector, (1) 2-pin phoenix connector, (1) DC24V 1A power supply with US, UK, EU and AU power adapter plugs, (2) Mounting ears with mounting screws
  • Applications:
  • Extend HDMI source, USB2.0 high speed and audio source at the same time or independently
  • Extension of HDMI, 3.5mm audio, USB2.0 high speed signals
  • Education, K-12, commercial video, residential

Specifications

Specifications

Maximum Frequency Response (Bandwidth) 20 kHz
Maximum Frequency Response (Bandwidth) 20000.0000 Hz
Minimum Frequency Response (Bandwidth) 0.0200 kHz
Minimum Frequency Response (Bandwidth) 20 Hz
Operating Temperature (Maximum) 104.0000 F
Operating Temperature (Maximum) 40 C
Operating Temperature (Minimum) 0 C
Operating Temperature (Minimum) 32.0000 F
Output Impedance 70 ohm
AC Voltage (Maximum) 240 Volts
AC Voltage (Minimum) 100 Volts
Active Power 9 Watt
Current Draw 1 Amps
DC Voltage 24 Volts
