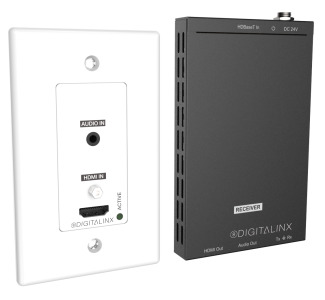

Wall Plate Single Decora HDMI and 3.5mm Audio Over HDBaseT with Matching Box Style Receiver

Print Wall Plate Single Decora HDMI and 3.5mm Audio Over HDBaseT with Matching Box Style Receiver pageRequest Bulk Pricing CAMCOR ITEM NO. 536006048 | MFG. PART NO. DL-1H1A-WPKT-W
Wall Plate Single Decora HDMI and 3.5mm Audio Over HDBaseT with Matching Box Style Receiver
Wall Plate Single Decora HDMI and 3.5mm Audio Over HDBaseT with Matching Box Style Receiver
Zoom
Close WindowZoom
Alternate View

MSRP: 400.22
Savings: $40.02

Your Price: $360.20
Quantity

Product Highlights
The Digitalinx DL-1H1A-WPKT-W HDBaseT extender set transmits HDMI, audio and RS232 over single category 6 twisted pair cable. The DL-1H1A-WPKT-W can transmit 4K resolutions up to 4K at 60Hz, 4:2:0 up  ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The Digitalinx DL-1H1A-WPKT-W HDBaseT extender set transmits HDMI, audio and RS232 over single category 6 twisted pair cable. The DL-1H1A-WPKT-W can transmit 4K resolutions up to 4K at 60Hz, 4:2:0 up to 40m/120’ and 1080P up to 70m/230’. The audio circuit is completely separate and is not dependent on the HDMI input source to be active. The Digitalinx DL-1H1A-WPKT-W is HDCP 2.2 compliant. The DL-1H1A-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate.

  • Extend HDMI and analog audio up to 70m
  • HDCP 2.2 compliant
  • Supports video up to 4K2K at 30Hz (4:4:4), 4K2K at 60Hz (4:2:0) 10.2G
  • Supports all HDMI audio formats
  • Single cable 40m for 4K/70m for 1080P
  • RS232 and CEC pass-through
  • Dedicated 3.5mm audio independent from the HDMI signal
  • Remote power from receiver to wall plate transmitter
  • TX is standard US 1-gang decorator format
  • Includes:
  • DL-1H1A-WPKT-W wall plate extender set, quick install guide, (1) decora cover plate, (1) 3-pin phoenix connector, (1) 2-pin phoenix connector, (1) DC24V 1A power supply with US, UK, EU and AU power adapter plugs, (2) mounting ears with mounting screws
  • Applications:
  • Extend HDMI source and audio source at the same time or independently
  • Extension of HDMI and 3.5mm audio signals
  • Education, commercial video, residential

Specifications

Specifications

Maximum Frequency Response (Bandwidth)20 kHz
Maximum Frequency Response (Bandwidth)20000.0000 Hz
Minimum Frequency Response (Bandwidth)0.0200 kHz
Minimum Frequency Response (Bandwidth)20 Hz
Operating Temperature (Maximum)104.0000 F
Operating Temperature (Maximum)40 C
Operating Temperature (Minimum)0 C
Operating Temperature (Minimum)32.0000 F
Output Impedance70 ohm
AC Voltage (Maximum)240 Volts
AC Voltage (Minimum)100 Volts
Active Power9 Watt
Current Draw1 Amps
DC Voltage24 Volts
