Kramer 1:2 Composite Video Distribution Amplifier

Name: Kramer 1:2 Composite Video Distribution Amplifier
Brand: Kramer Electronics
Price: 135.00 USD
Availability: InStock

Print Kramer 1:2 Composite Video Distribution Amplifier page

CAMCOR ITEM NO. 384059401 | MFG. PART NO. 90-102090

Kramer 1:2 Composite Video Distribution Amplifier

Product Highlights
The Pt-102Vn Is A Distribution Amplifier For Composite Video Or Sdi Signals. It Takes One Input, Provides Correct Buffering And Isolation And Distributes The Signal To Two Identical ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Related Documents |Customers Also Viewed |Reviews

Product Description

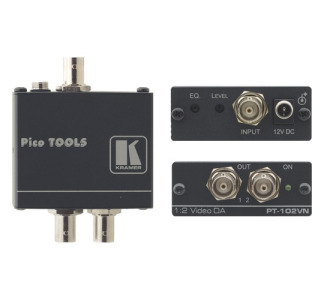

The Pt-102Vn Is A Distribution Amplifier For Composite Video Or Sdi Signals. It Takes One Input, Provides Correct Buffering And Isolation And Distributes The Signal To Two Identical Outputs.

Specifications

General Information
Manufacturer	Kramer Electronics LTD
Brand Name	Kramer
Product Model	PT-102VN
Product Type	Video Distribution Amplifier
Technical Information
Maximum Frequency	430 MHz
Power Description
Input Voltage	12 V DC
Physical Characteristics
Height	1"
Width	2.4"
Depth	2.6"
Weight (Approximate)	4.94 oz
Miscellaneous
Additional Information	Max. Video Output: 2Vpp. Video Bandwidth (-3dB): 430MHz. Diff. Gain: 0.05%. Diff. Phase: 0.05Deg. K-Factor: <0.05%. S/N Ratio: 76.1dB. Control: Gain: -1.2 to +6dB; EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel.
