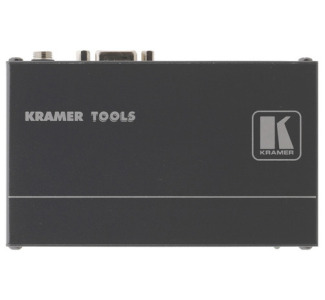

Kramer Computer Graphics Video over Twisted Pair Receiver with EMP Protection

Product Description

The Kramer Computer Graphics Video over Twisted Pair Receiver with EMP Protection receives computer graphic signals up to WUXGA & 1080p via a twisted pair cable. When used with the PT-110-od twisted pair transmitter or other compatible transmitters, the receiver provides an extension of up to 320’ (100m). Featuring level (gain) and EQ (peaking) controls, the receiver converts twisted pair signals back into a computer graphics video signal without any loss in the signal over the entire transmission length.

The transmitter requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 150’ (50m) of each other. Via EMP protection, it offers protection against voltage surges induced by electromagnetic field of a nearby lightning strike. However, it does not protect against direct lightning strikes. In addition, 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor.

• For Use over a Twisted Pair Line (Cat5)
• Transmission Distance up to 320' (100m)
• Level (Gain) / EQ (Peaking) Controls
• Power Connect System
• 1/3 Rack Space
• HDTV Compatible
• EMP Protection
