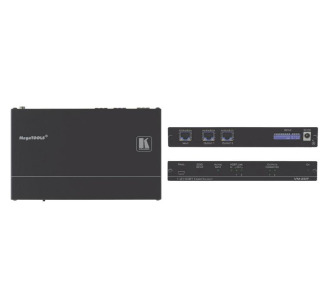

1 x 2 4K60 4:2:0 Long Reach HDBaseT Distribution Amplifier

Product Description

VM-2DT is a high-quality, long-reach 4K at 60Hz (4:2:0) HDBaseT distributor that takes one long-reach HDBaseT input, equalizes and reclocks the signal and distributes it to two identical HDBaseT outputs. The VM-2DT distributes native long-reach HDBaseT signals with up to 4K video resolution, along with their re-extension over long-reach HDBaseT to feature integrated line-extender distributor product.

• Line Extender Distributor - Native 1:2 long-reach HDBaseT distributor for deploying mid-way between AV source and distributed signal displays to gain extra-long reach extension
• Reach Extension - Up to 70m (230ft) at 2K resolutions and 40m (130ft) at 4K resolutions over Kramer HDBaseT compliant copper cable
• Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non-Kramer twisted pair cables
• Transmitted Data Bandwidth - 10.2Gbps (3.4Gbps per graphic channel)
• Compliance - Complies with HDBaseT copper transmitter and receiver such as Kramer HDBaseT extenders
• Video Resolution - Up to 4K at 60Hz (4:2:0) 24bpp
• HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems
• LED Indicators - Status indicators for HDBaseT input and output connected signals, and power indicator, for ease of maintenance and troubleshooting
• Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fanless enclosure for over-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the optional RKT2B rack adapter
• Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RKT2B rack adapter
• Applications:
• Native AV signal re-extension and distribution in large rooms
• Applicable for corporate, education, hospitality, government market segments
