20-Port Audio Matrix with DSP and Interchangeable Inputs Outputs

Product Description

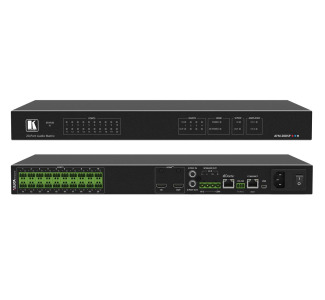

AFM-20DSP is a high-performance, professional audio matrix switcher with 20 analog ports that can be configured as inputs or outputs according to preset I/O configurations. AFM-20DSP includes multi-channel DSP, built-in 2x60W @ 8 ohms and 1x120W @ 70V / 100V power amplifier, 4x4 Dante interface, HDMI embedding and de-embedding, and S/PDIF. The comprehensive and user-friendly graphic interface makes configuring every detail of your audio system intuitive and easy.

• High-Performance, Professional Audio Matrix Switcher - Professional, studio grade signal conversion technology ...
• ...Including the latest generation 32-bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
• Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
• Flat frequency response, unmatched sonic performance, excellent signal to noise ratio, and extraordinarily low distortion levels.
• Wide Range of I/O Formats - Includes 20 analog ports, 4x4 Dante interface, HDMI input and output, and S/PDIF input and output.
• Multi-Channel Processing - Provides DSP (Digital Sound Processing) that enables simultaneous processing of all input and output signals.
• Built-in Power Amplifier - 2x60W @ 8 ohms and 1x120W @ 70V / 100V power amplifier.
• Maximum Flexibility - Customize the analog port configuration: use the default 12 x8 I/O matrix configuration or select from one of the many other preset I/O configurations.
• Route any input to any output, even between different formats (for example, route an analog input to an S/PDIF output). Control volume and DSP per port. Route any of the ports to the power amplifier.
• Intuitive and Comprehensive Configuration and Control -
• Via a powerful, user-friendly graphic interface, set volume (gain and attenuation) and DSP per input, execute routing, select line in, mic in, phantom power or line out on each port, configure master level and more.
• Audio De-embedding - De-embeds the audio signal from the HDMI input for routing to any of the outputs or for routing to the loop output.
• Programmable - Supports up to 10 global presets per I/O configuration plus 10 mixer snapshot presets.
• Convenient Control - Via the user-friendly embedded web pages and RS-232 serial controller, control signal routing, independent volume.
• Easy, Cost-Effective Maintenance - LED indicators for main power, line in/out, mic in, clipping, power amp, Dante sync, and HDMI, enable easy local maintenance and troubleshooting.
• Local firmware upgrade via the USB type-A port ensures lasting, field-proven deployment.
• Easy Installation - 19" enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240V AC power connection.
