20-Port Audio Matrix with DSP and Interchangeable Inputs and Outputs, Lite Edition

Product Description

AFM-20DSP-LE is a member of the Kramer XSPerience family of DSP products. AFM-20DSP-LE is an advanced, professional audio matrix switcher with 20 analog ports that can be configured as inputs or outputs according to preset I/O configurations. AFM-20DSP-LE includes multi-channel DSP and a comprehensive and user-friendly graphic interface that makes configuring every detail of your audio system intuitive and easy.

• Advanced audio matrix switcher. Professional, studio grade signal conversion technology, Including the latest generation 32-bit advanced digital analog converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
• Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz. Flat frequency response, unmatched sonic performance, excellent signal to noise ratio and extraordinarily low distortion levels.
• Multi-channel processing provides DSP (Digital Sound Processing) that enables simultaneous processing of all input and output signals.
• Maximum flexibility Customize the analog port configuration: use the default 12 x 8 I/O matrix configuration or select from one of the many other preset I/O configurations. Route any input to any output.
• Simple and powerful maestro room automation. Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including input/output connectivi
• Intuitive and comprehensive configuration and control Via a powerful, user-friendly graphic interface, set volume (gain and attenuation) and DSP per input; execute routing and select line in, mic in, phantom power or line out on each port; configure mast
• Programmable Supports up to 10 global presets per I/O configuration plus 10 mixer snapshot presets.
• Easy, cost-effective maintenance LED indicators for main power, line in/out, mic in and clipping enable easy local maintenance and troubleshooting. Local firmware upgrade via the USB port ensures lasting, field-proven deployment.

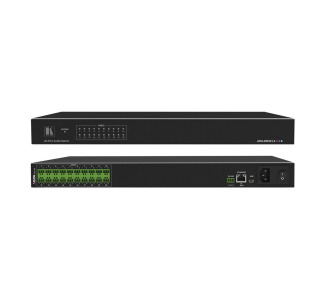

• Easy Installation 19 inch enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240 VAC power connection.
